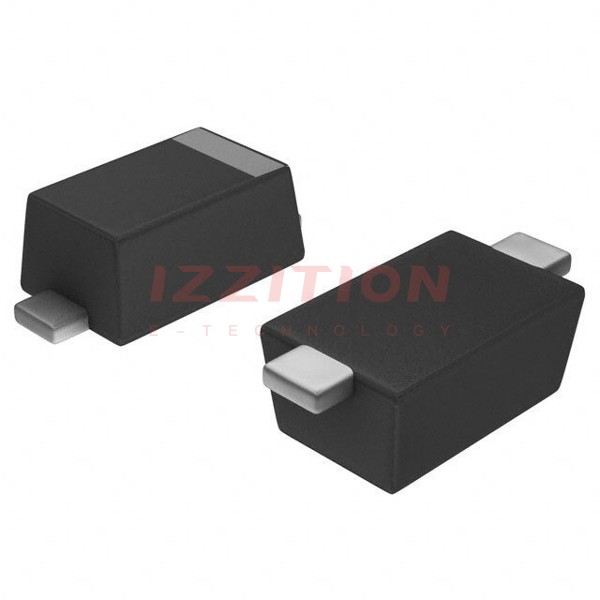

| Part Number | PMEG3010EH,115 | PMEG3010EJ,115 | PMEG3015EH,115 | PMEG3020EH,115 | PMEG3010ER,115 | PMEG3010EP,115 | PMEG2010EH,115 | PMEG3010CEH,115 | PMEG3010EB,115 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Diode Type | Schottky | Schottky | Schottky | Schottky | Schottky | Schottky | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 30 V | 30 V | 30 V | 30 V | 30 V | 30 V | 20 V | 30 V | 30 V |
| Current - Average Rectified (Io) | 1A (DC) | 1A (DC) | 1.5A (DC) | 2A (DC) | 1A | 1A | 1A (DC) | 1A (DC) | 1A (DC) |
| Voltage - Forward (Vf) (Max) @ If | 560 mV @ 1 A | 560 mV @ 1 A | 550 mV @ 1.5 A | 620 mV @ 2 A | 360 mV @ 1 A | 360 mV @ 1 A | 500 mV @ 1 A | 520 mV @ 1 A | 680 mV @ 1 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - | - | - | - | - | - | - |
| Current - Reverse Leakage @ Vr | 150 µA @ 30 V | 150 µA @ 30 V | 1 mA @ 30 V | 1 mA @ 30 V | 1.5 mA @ 30 V | 1.5 mA @ 30 V | 200 µA @ 20 V | 50 µA @ 30 V | 500 µA @ 30 V |
| Capacitance @ Vr, F | 70pF @ 1V, 1MHz | 70pF @ 1V, 1MHz | 72pF @ 1V, 1MHz | 72pF @ 1V, 1MHz | 170pF @ 1V, 1MHz | 170pF @ 1V, 1MHz | 80pF @ 1V, 1MHz | 100pF @ 1V, 1MHz | 30pF @ 1V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SOD-123F | SC-90, SOD-323F | SOD-123F | SOD-123F | SOD-123W | SOD-128 | SOD-123F | SOD-123F | SC-79, SOD-523 |
| Supplier Device Package | SOD-123F | SOD-323F | SOD-123F | SOD-123F | SOD-123W | SOD-128/CFP5 | SOD-123F | SOD-123F | SOD-523 |
| Operating Temperature - Junction | 150°C (Max) | 150°C (Max) | 150°C (Max) | 150°C (Max) | 150°C (Max) | 150°C (Max) | 150°C (Max) | 150°C (Max) | 150°C (Max) |
