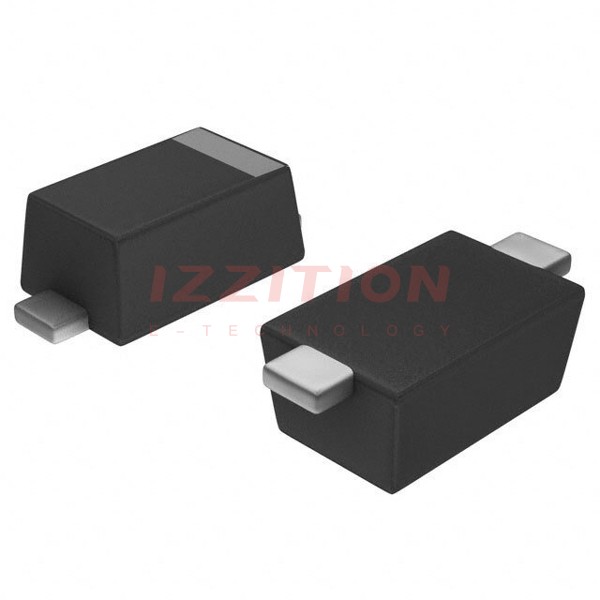

| Part Number | PMEG3005EH,115 | PMEG3015EH,115 | PMEG3005EJ,115 | PMEG2005EH,115 | PMEG3005EB,115 |
|---|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Diode Type | Schottky | Schottky | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 30 V | 30 V | 30 V | 20 V | 30 V |
| Current - Average Rectified (Io) | 500mA (DC) | 1.5A (DC) | 500mA (DC) | 500mA (DC) | 500mA (DC) |
| Voltage - Forward (Vf) (Max) @ If | 430 mV @ 500 mA | 550 mV @ 1.5 A | 430 mV @ 500 mA | 390 mV @ 500 mA | 500 mV @ 500 mA |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - | - | - |
| Current - Reverse Leakage @ Vr | 150 µA @ 30 V | 1 mA @ 30 V | 150 µA @ 30 V | 200 µA @ 20 V | 500 µA @ 30 V |
| Capacitance @ Vr, F | 70pF @ 1V, 1MHz | 72pF @ 1V, 1MHz | 70pF @ 1V, 1MHz | 80pF @ 1V, 1MHz | 30pF @ 1V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SOD-123F | SOD-123F | SC-90, SOD-323F | SOD-123F | SC-79, SOD-523 |
| Supplier Device Package | SOD-123F | SOD-123F | SOD-323F | SOD-123F | SOD-523 |
| Operating Temperature - Junction | 150°C (Max) | 150°C (Max) | 150°C (Max) | 150°C (Max) | 150°C (Max) |
