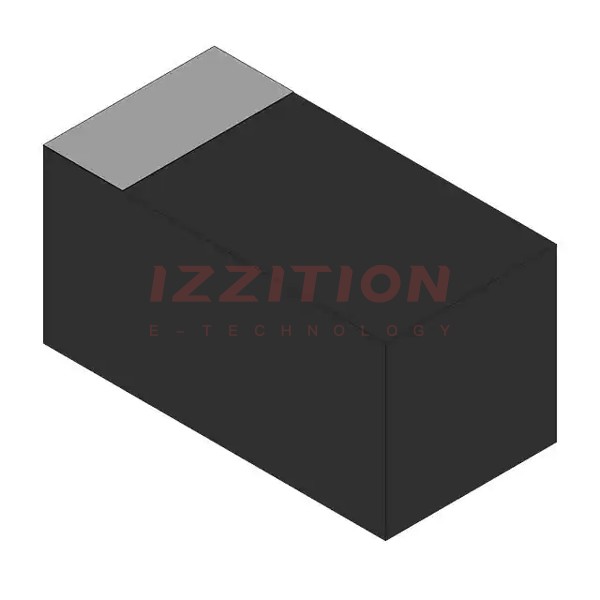

| Part Number | PMEG3002ESFYL | PMEG3005ESFYL | PMEG3002AESFYL | PMEG3002ESFCYL |
|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active | Active |
| Diode Type | Schottky | Schottky | Schottky | - |
| Voltage - DC Reverse (Vr) (Max) | 30 V | 30 V | 30 V | - |
| Current - Average Rectified (Io) | 200mA | 500mA | 200mA | - |
| Voltage - Forward (Vf) (Max) @ If | 535 mV @ 200 mA | 720 mV @ 500 mA | 470 mV @ 200 mA | - |
| Speed | Small Signal =< 200mA (Io), Any Speed | Fast Recovery =< 500ns, > 200mA (Io) | Small Signal =< 200mA (Io), Any Speed | - |
| Reverse Recovery Time (trr) | 1.42 ns | 1.42 ns | 1.37 ns | - |
| Current - Reverse Leakage @ Vr | 9 µA @ 30 V | 9 µA @ 30 V | 80 µA @ 30 V | - |
| Capacitance @ Vr, F | 21pF @ 1V, 1MHz | 21pF @ 1V, 1MHz | 22pF @ 1V, 1MHz | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | - |
| Package / Case | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) | - |
| Supplier Device Package | DSN0603-2 | DSN0603-2 | DSN0603-2 | - |
| Operating Temperature - Junction | 150°C (Max) | 150°C (Max) | 150°C (Max) | - |
