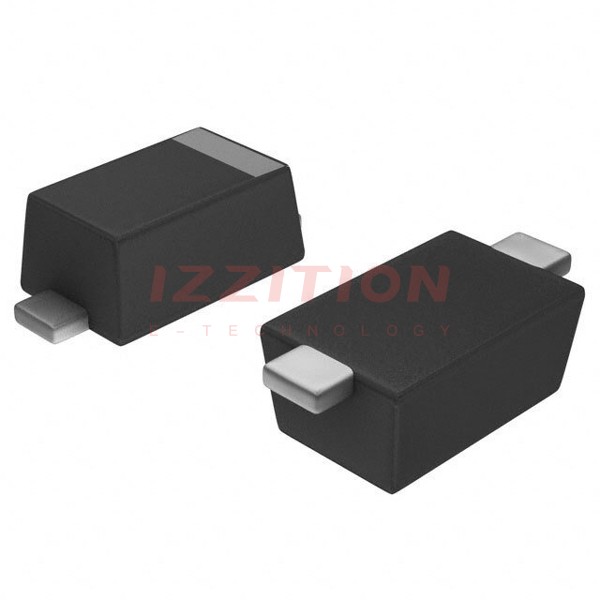

| Part Number | PMEG2010EH,115 | PMEG3010EH,115 | PMEG2010EJ,115 | PMEG2010EV,115 | PMEG2015EH,115 | PMEG2010ER,115 | PMEG2020EH,115 | PMEG2010AEH,115 | PMEG2010EA,115 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | NXP Semiconductors | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active | Obsolete | Active | Active | Active | Active | Active |
| Diode Type | Schottky | Schottky | Schottky | Schottky | Schottky | Schottky | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 20 V | 30 V | 20 V | 20 V | 20 V | 20 V | 20 V | 20 V | 20 V |
| Current - Average Rectified (Io) | 1A (DC) | 1A (DC) | 1A (DC) | 1A (DC) | 1.5A (DC) | 1A | 2A (DC) | 1A (DC) | 1A (DC) |
| Voltage - Forward (Vf) (Max) @ If | 500 mV @ 1 A | 560 mV @ 1 A | 500 mV @ 1 A | 500 mV @ 1 A | 660 mV @ 1.5 A | 340 mV @ 1 A | 525 mV @ 2 A | 430 mV @ 1 A | 550 mV @ 1 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - | - | - | - | - | - | - | - | - |
| Current - Reverse Leakage @ Vr | 200 µA @ 20 V | 150 µA @ 30 V | 200 µA @ 20 V | 50 µA @ 15 V | 70 µA @ 20 V | 1 mA @ 20 V | 200 µA @ 20 V | 200 µA @ 20 V | 50 µA @ 15 V |
| Capacitance @ Vr, F | 80pF @ 1V, 1MHz | 70pF @ 1V, 1MHz | 80pF @ 1V, 1MHz | 25pF @ 5V, 1MHz | 50pF @ 1V, 1MHz | 175pF @ 1V, 1MHz | 60pF @ 5V, 1MHz | 70pF @ 5V, 1MHz | 25pF @ 5V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SOD-123F | SOD-123F | SC-90, SOD-323F | SOT-563, SOT-666 | SOD-123F | SOD-123W | SOD-123F | SOD-123F | SC-76, SOD-323 |
| Supplier Device Package | SOD-123F | SOD-123F | SOD-323F | SOT-666 | SOD-123F | SOD-123W | SOD-123F | SOD-123F | SOD-323 |
| Operating Temperature - Junction | 150°C (Max) | 150°C (Max) | 150°C (Max) | 125°C (Max) | 150°C (Max) | 150°C (Max) | 150°C (Max) | 150°C (Max) | 125°C (Max) |
