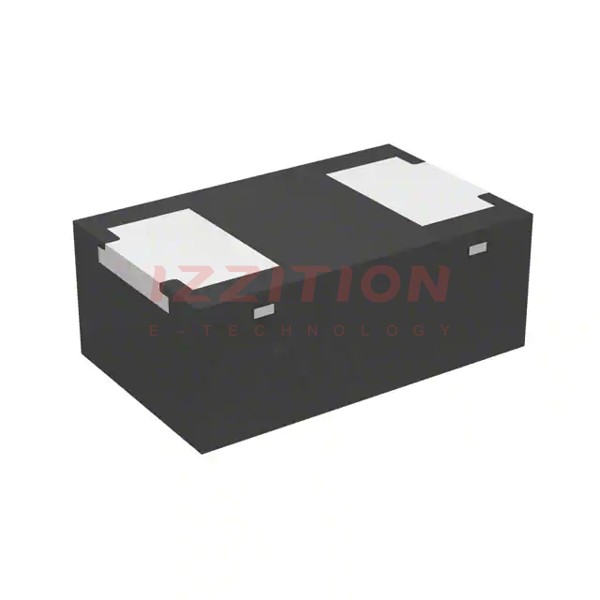

| Part Number | PMEG2005ELD,315 | PMEG3005ELD,315 | PMEG2005AELD,315 | PMEG2005BELD,315 | PMEG2005EL,315 |
|---|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Diode Type | Schottky | Schottky | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 20 V | 30 V | 20 V | 20 V | 20 V |
| Current - Average Rectified (Io) | 500mA | 500mA | 500mA | 500mA | 500mA (DC) |
| Voltage - Forward (Vf) (Max) @ If | 500 mV @ 500 mA | 500 mV @ 500 mA | 440 mV @ 500 mA | 390 mV @ 500 mA | 500 mV @ 500 mA |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 7 ns | 6 ns | 6 ns | 1.6 ns | - |
| Current - Reverse Leakage @ Vr | 30 µA @ 10 V | 500 µA @ 30 V | 1.5 mA @ 20 V | 200 µA @ 20 V | 30 µA @ 10 V |
| Capacitance @ Vr, F | 30pF @ 1V, 1MHz | 30pF @ 1V, 1MHz | 25pF @ 1V, 1MHz | 40pF @ 1V, 1MHz | 30pF @ 1V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2-XDFN | 2-XDFN | 2-XDFN | SOD-882 | SOD-882 |
| Supplier Device Package | DFN1006D-2 | DFN1006D-2 | DFN1006D-2 | DFN1006-2 | DFN1006-2 |
| Operating Temperature - Junction | 150°C (Max) | 150°C (Max) | 150°C (Max) | 150°C (Max) | -65°C ~ 150°C |
