| Part Number | PMEG100V080ELPEZ | PMEG100T080ELPEZ | PMEG100V080ELPDZ |
|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active |
| Diode Type | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 100 V | 100 V | 100 V |
| Current - Average Rectified (Io) | 8A | 8A | 8A |
| Voltage - Forward (Vf) (Max) @ If | 850 mV @ 8 A | 810 mV @ 8 A | 850 mV @ 8 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 10 ns | 19 ns | 10 ns |
| Current - Reverse Leakage @ Vr | 500 nA @ 100 V | 4 µA @ 100 V | 500 nA @ 100 V |
| Capacitance @ Vr, F | 97pF @ 10V, 1MHz | 680pF @ 1V, 1MHz | 110pF @ 10V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

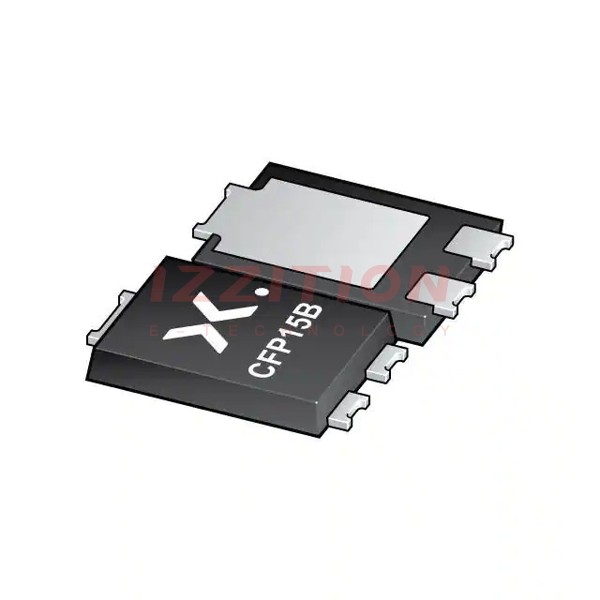

| Package / Case | TO-277, 3-PowerDFN | TO-277, 3-PowerDFN | TO-277, 3-PowerDFN |
| Supplier Device Package | CFP15B | CFP15B | CFP15 |
| Operating Temperature - Junction | 175°C | 175°C | 175°C (Max) |
