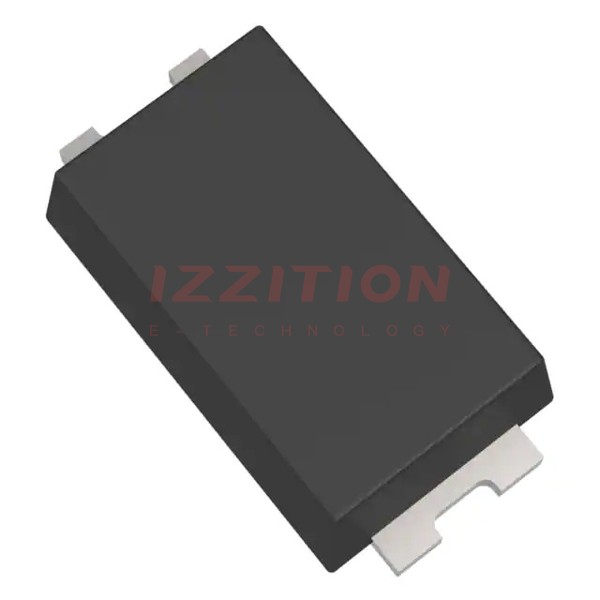

| Part Number | PMEG100T10ELXDX | PMEG100T20ELXDX |
|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active |
| Diode Type | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 100 V | 100 V |
| Current - Average Rectified (Io) | 1A | 2A |
| Voltage - Forward (Vf) (Max) @ If | 795 mV @ 1 A | 880 mV @ 2 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 6 ns | 6 ns |
| Current - Reverse Leakage @ Vr | 500 nA @ 100 V | 600 nA @ 100 V |
| Capacitance @ Vr, F | 95pF @ 1V, 1MHz | 120pF @ 1V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 2-SMD, Flat Lead | 2-SMD, Flat Lead |
| Supplier Device Package | SOD323HP | SOD323HP |
| Operating Temperature - Junction | 175°C | 175°C |
