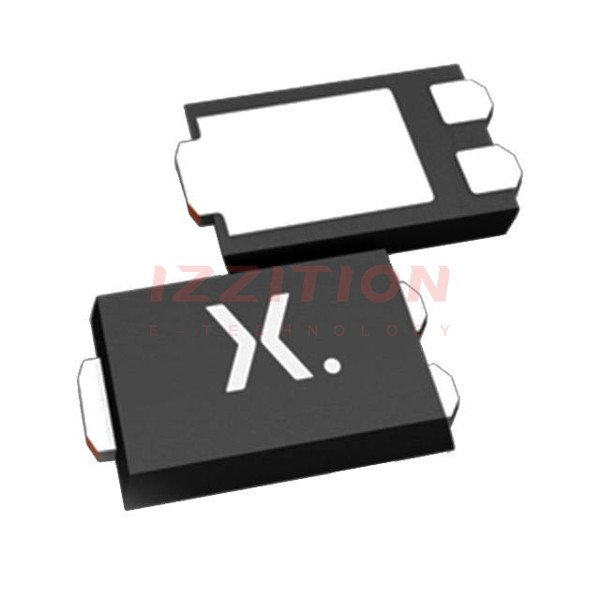

| Part Number | PMEG060V050EPDZ | PMEG030V050EPDZ | PMEG040V050EPDZ | PMEG060V030EPDZ | PMEG060V050EPDAZ |
|---|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Diode Type | Schottky | Schottky | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 60 V | 30 V | 40 V | 60 V | 60 V |
| Current - Average Rectified (Io) | 5A | 5A | 5A | 3A | 5A |
| Voltage - Forward (Vf) (Max) @ If | 560 mV @ 5 A | 550 mV @ 5 A | 520 mV @ 5 A | 530 mV @ 3 A | 560 mV @ 5 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 17 ns | 16 ns | 13 ns | 12 ns | 12 ns |
| Current - Reverse Leakage @ Vr | 400 µA @ 60 V | 150 µA @ 30 V | 120 µA @ 40 V | 200 µA @ 60 V | 400 µA @ 60 V |
| Capacitance @ Vr, F | 510pF @ 1V, 1MHz | 495pF @ 1V, 1MHz | 395pF @ 1V, 1MHz | 350pF @ 1V, 1MHz | 175pF @ 10V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | TO-277, 3-PowerDFN | TO-277, 3-PowerDFN | TO-277, 3-PowerDFN | TO-277, 3-PowerDFN | TO-277, 3-PowerDFN |
| Supplier Device Package | CFP15 | CFP15 | CFP15 | CFP15 | CFP15 |
| Operating Temperature - Junction | 175°C (Max) | 175°C (Max) | 175°C (Max) | 175°C (Max) | 175°C (Max) |
