Please send RFQ , we will respond immediately.

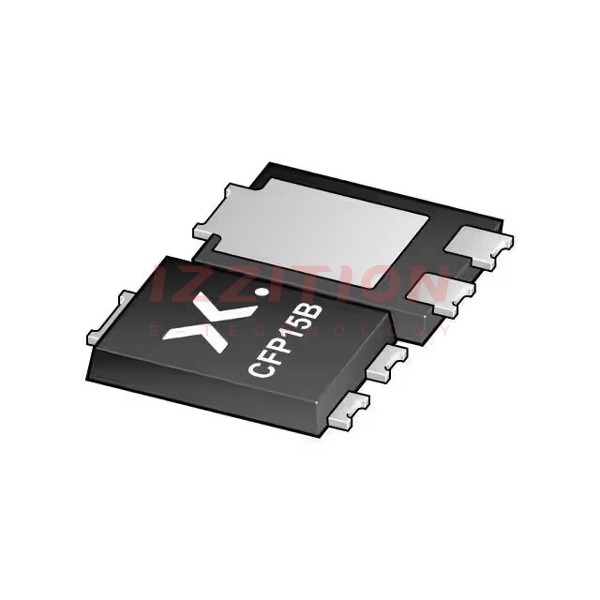

| Part Number | PMEG060T040CLPE-QZ | PMEG060T060CLPE-QZ | PMEG060T080CLPE-QZ |
|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active |
| Diode Configuration | 1 Pair Common Cathode | 1 Pair Common Cathode | 1 Pair Common Cathode |
| Diode Type | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 60 V | 60 V | 60 V |
| Current - Average Rectified (Io) (per Diode) | 2A | 3A | 4A |
| Voltage - Forward (Vf) (Max) @ If | 620 mV @ 2 A | 620 mV @ 3 A | 660 mV @ 4 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 12 ns | 17 ns | 17 ns |
| Current - Reverse Leakage @ Vr | 1.2 µA @ 60 V | 1.8 µA @ 60 V | 1.8 µA @ 60 V |
| Operating Temperature - Junction | 175°C | 175°C | 175°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | TO-277, 3-PowerDFN | TO-277, 3-PowerDFN | TO-277, 3-PowerDFN |
| Supplier Device Package | CFP15B | CFP15B | CFP15B |
