| Part Number | PMEG050T150EPDAZ | PMEG050T150EPDZ | PMEG050V150EPDAZ | PMEG050T150EIPDAZ |
|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active | Active |
| Diode Type | Schottky | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 50 V | 50 V | 50 V | 50 V |
| Current - Average Rectified (Io) | 15A | 15A | 15A | 15A (DC) |
| Voltage - Forward (Vf) (Max) @ If | 550 mV @ 15 A | 550 mV @ 15 A | 500 mV @ 15 A | 570 mV @ 15 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 60 ns | 60 ns | 20 ns | 49 ns |
| Current - Reverse Leakage @ Vr | 100 µA @ 50 V | 100 µA @ 50 V | 1 mA @ 50 V | 200 µA @ 50 V |
| Capacitance @ Vr, F | 800pF @ 10V, 1MHz | 800pF @ 10V, 1MHz | 570pF @ 10V, 1MHz | 1.37nF @ 1V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | TO-277, 3-PowerDFN | TO-277, 3-PowerDFN | TO-277, 3-PowerDFN | TO-277, 3-PowerDFN |

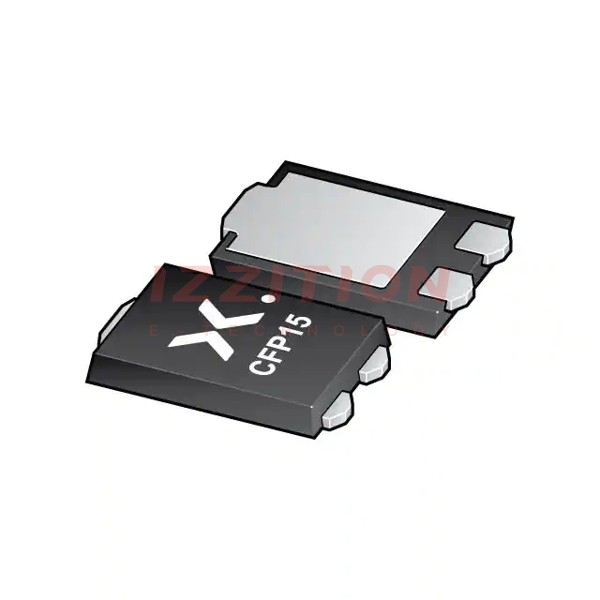

| Supplier Device Package | CFP15 | CFP15 | CFP15 | CFP15 |
| Operating Temperature - Junction | 175°C (Max) | 175°C (Max) | 175°C (Max) | 175°C (Max) |
