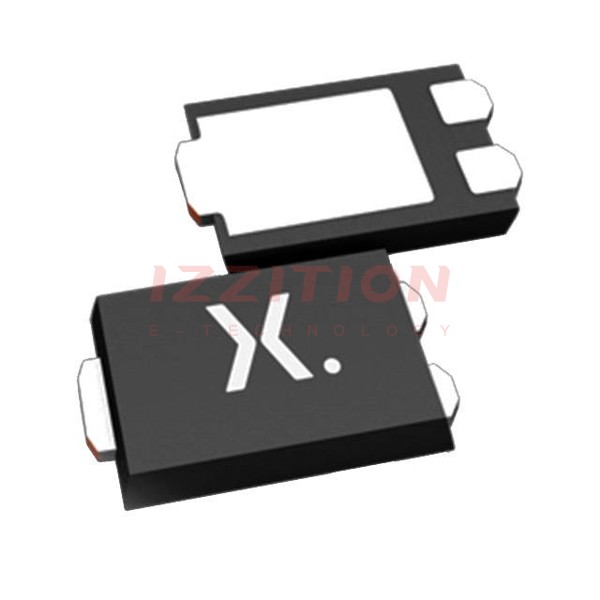

| Part Number | PMEG045T100EPDZ | PMEG045V100EPDZ | PMEG045T100EPEZ | PMEG045T150EPDZ | PMEG045T100EPDAZ |
|---|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Diode Type | Schottky | Schottky | Schottky | Schottky | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 45 V | 45 V | 45 V | 45 V | 45 V |
| Current - Average Rectified (Io) | 14A (DC) | 10A | 10A | 15A | 14A (DC) |
| Voltage - Forward (Vf) (Max) @ If | 480 mV @ 10 A | 490 mV @ 10 A | 545 mV @ 10 A | 550 mV @ 15 A | 480 mV @ 10 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 40 ns | 17 ns | 40 ns | 20 ns | 40 ns |
| Current - Reverse Leakage @ Vr | 80 µA @ 45 V | 50 µA @ 10 V | 80 µA @ 45 V | 100 µA @ 45 V | 80 µA @ 45 V |
| Capacitance @ Vr, F | 1.4nF @ 1V, 1MHz | 1190pF @ 1V, 1MHz | 600pF @ 10V, 1MHz | 800pF @ 10V, 1MHz | 1.4nF @ 1V, 1MHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | TO-277, 3-PowerDFN | TO-277, 3-PowerDFN | TO-277, 3-PowerDFN | TO-277, 3-PowerDFN | TO-277, 3-PowerDFN |
| Supplier Device Package | CFP15 | CFP15 | CFP15B | CFP15 | CFP15 |
| Operating Temperature - Junction | 175°C (Max) | -55°C ~ 175°C | 175°C (Max) | 175°C (Max) | 175°C (Max) |
