| Part Number | PMDPB70XP,115 | PMDPB70XPE,115 | PMDPB80XP,115 |
|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active |
| FET Type | 2 P-Channel (Dual) | 2 P-Channel (Dual) | 2 P-Channel (Dual) |
| FET Feature | Logic Level Gate | Logic Level Gate | Logic Level Gate, 1.8V Drive |
| Drain to Source Voltage (Vdss) | 30V | 20V | 20V |
| Current - Continuous Drain (Id) @ 25°C | 2.9A | 3A | 2.7A |
| Rds On (Max) @ Id, Vgs | 87mOhm @ 2.9A, 4.5V | 79mOhm @ 2A, 4.5V | 102mOhm @ 2.7A, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 250µA | 1.25V @ 250µA | 1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 7.8nC @ 5V | 7.5nC @ 4.5V | 8.6nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds | 680pF @ 15V | 600pF @ 10V | 550pF @ 10V |
| Power - Max | 490mW | 515mW | 485mW |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

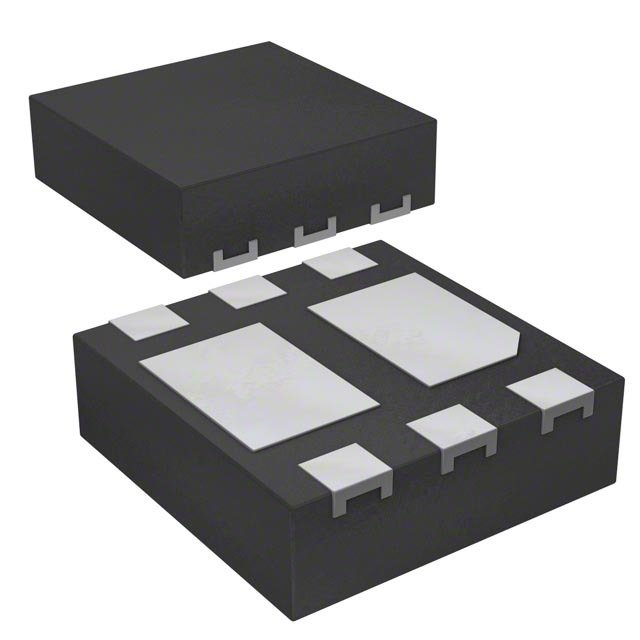

| Package / Case | 6-UFDFN Exposed Pad | 6-UFDFN Exposed Pad | 6-UFDFN Exposed Pad |
| Supplier Device Package | 6-HUSON (2x2) | 6-HUSON (2x2) | 6-HUSON (2x2) |
