Nexperia USA Inc.-PMCM440VNEZ - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	12 V
Current - Continuous Drain (Id) @ 25°C:	3.9A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	4.5V
Rds On (Max) @ Id, Vgs:	67mOhm @ 3A, 4.5V
Vgs(th) (Max) @ Id:	900mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	8.2 nC @ 4.5 V
Vgs (Max):	±8V
Input Capacitance (Ciss) (Max) @ Vds:	360 pF @ 6 V
FET Feature:	-
Power Dissipation (Max):	400mW (Ta), 12.5W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount

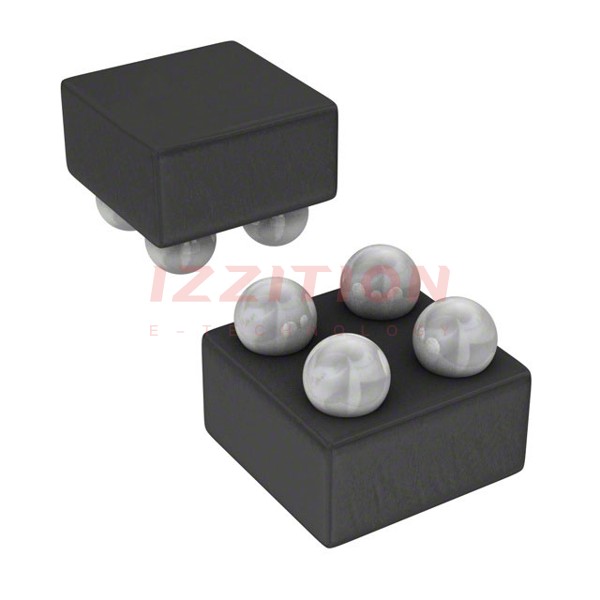

Supplier Device Package:	4-WLCSP (0.78x0.78)
Package / Case:	4-XFBGA, WLCSP

Nexperia USA Inc. PMCM440VNEZ
