| Part Number | PMCM4401UPEZ | PMCM4402UPEZ | PMCM4401VPEZ | PMCM4401UNEZ |
|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | NXP Semiconductors | Nexperia USA Inc. |
| Product Status | Active | Active | Active | Active |
| FET Type | P-Channel | P-Channel | P-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V | 20 V | 12 V | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 4A (Ta) | 4.2A (Tj) | 3.9A (Ta) | 5.4A (Tj) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4.5V | 2.5V, 4.5V | 1.8V, 4.5V | 2.5V, 4.5V |
| Rds On (Max) @ Id, Vgs | 95mOhm @ 3A, 4.5V | - | 65mOhm @ 3A, 4.5V | - |
| Vgs(th) (Max) @ Id | 900mV @ 250µA | - | 900mV @ 250µA | - |
| Gate Charge (Qg) (Max) @ Vgs | 10 nC @ 4.5 V | 6.2 nC @ 4.5 V | 10 nC @ 4.5 V | 6.2 nC @ 4.5 V |
| Vgs (Max) | ±8V | - | ±8V | - |
| Input Capacitance (Ciss) (Max) @ Vds | 420 pF @ 10 V | - | 415 pF @ 6 V | - |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 400mW (Ta), 12.5W (Tc) | 400mW | 400mW (Ta), 12.5W (Tc) | 400mW |
| Operating Temperature | -55°C ~ 150°C (TJ) | 150°C (TJ) | -55°C ~ 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

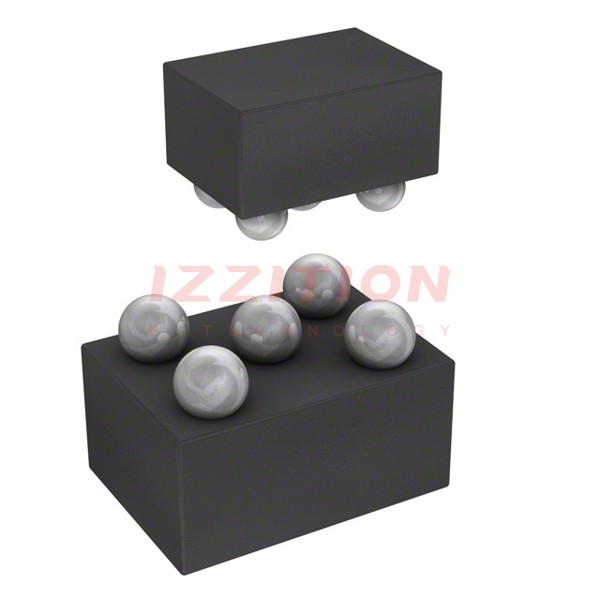

| Supplier Device Package | 4-WLCSP (0.78x0.78) | 4-WLCSP (0.78x0.78) | 4-WLCSP (0.78x0.78) | 4-WLCSP (0.78x0.78) |
| Package / Case | 4-XFBGA, WLCSP | 4-XFBGA, WLCSP | 4-XFBGA, WLCSP | 4-XFBGA, WLCSP |
