| Part Number | PMCM4401UNEZ | PMCM4401UPEZ |
|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active |
| FET Type | N-Channel | P-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 5.4A (Tj) | 4A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V | 1.8V, 4.5V |
| Rds On (Max) @ Id, Vgs | - | 95mOhm @ 3A, 4.5V |
| Vgs(th) (Max) @ Id | - | 900mV @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 6.2 nC @ 4.5 V | 10 nC @ 4.5 V |
| Vgs (Max) | - | ±8V |
| Input Capacitance (Ciss) (Max) @ Vds | - | 420 pF @ 10 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 400mW | 400mW (Ta), 12.5W (Tc) |
| Operating Temperature | 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |

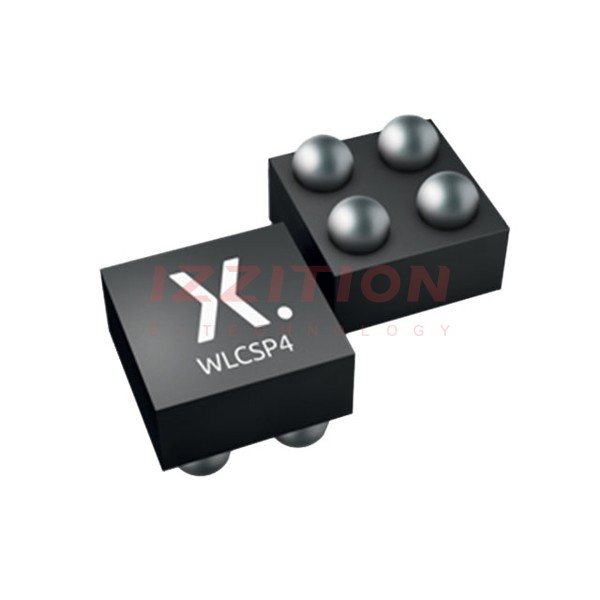

| Supplier Device Package | 4-WLCSP (0.78x0.78) | 4-WLCSP (0.78x0.78) |
| Package / Case | 4-XFBGA, WLCSP | 4-XFBGA, WLCSP |
