| Part Number | PIMN32X | PIMP32X | PIMC32X |
|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active |
| Transistor Type | 2 NPN - Pre-Biased (Dual) | 2 PNP - Pre-Biased (Dual) | 1 NPN, 1 PNP - Pre-Biased (Dual) |
| Current - Collector (Ic) (Max) | 500mA | 500mA | 500mA |
| Voltage - Collector Emitter Breakdown (Max) | 50V | 50V | 50V |
| Resistor - Base (R1) | 2.2kOhms | 2.2kOhms | 2.2kOhms |
| Resistor - Emitter Base (R2) | 10kOhms | 10kOhms | 10kOhms |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 70 @ 50mA, 5V | 70 @ 50mA, 5V | 70 @ 50mA, 5V |
| Vce Saturation (Max) @ Ib, Ic | 100mV @ 2.5mA, 50mA | 100mV @ 2.5mA, 50mA | 100mV @ 2.5mA, 50mA |
| Current - Collector Cutoff (Max) | 500nA | 500nA | 500nA |
| Frequency - Transition | 225MHz | 140MHz | 225MHz, 140MHz |
| Power - Max | 290mW | 290mW | 290mW |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

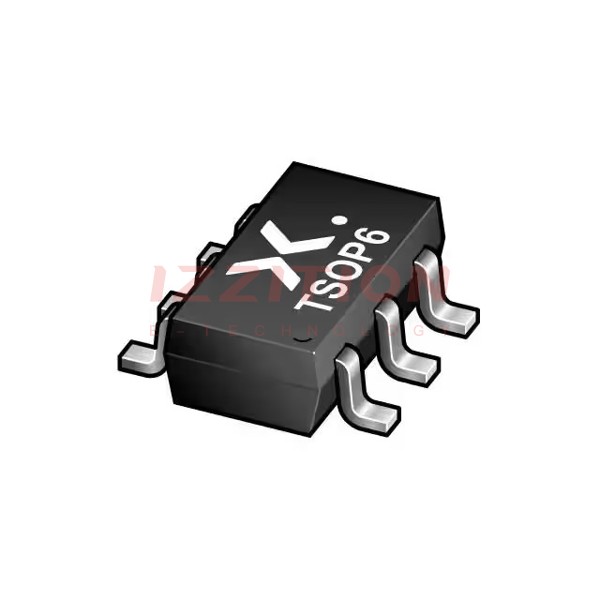

| Package / Case | SC-74, SOT-457 | SC-74, SOT-457 | SC-74, SOT-457 |
| Supplier Device Package | 6-TSOP | 6-TSOP | 6-TSOP |
