Please send RFQ , we will respond immediately.

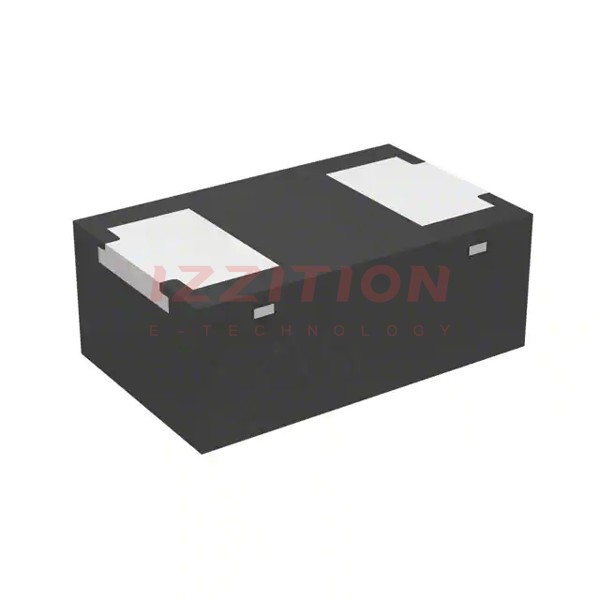

| Part Number | PESD5V0S1ULD,315 | PESD5V0X1ULD,315 | PESD5V0L1ULD,315 | PESD5V0S1BLD,315 | PESD5V0S1UL,315 |
|---|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | NXP Semiconductors | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Type | Zener | - | - | Zener | Zener |
| Unidirectional Channels | 1 | - | - | - | 1 |
| Bidirectional Channels | - | - | - | 1 | - |
| Voltage - Reverse Standoff (Typ) | 5V (Max) | - | - | 5V (Max) | 5V (Max) |
| Voltage - Breakdown (Min) | 6.4V | - | - | 5.5V | 6.4V |
| Voltage - Clamping (Max) @ Ipp | 20V | - | - | 14V | 20V |
| Current - Peak Pulse (10/1000µs) | 15A (8/20µs) | - | - | 12A (8/20µs) | 15A (8/20µs) |
| Power - Peak Pulse | 150W | - | - | 130W | 150W |
| Power Line Protection | No | - | - | No | No |
| Applications | Automotive | - | - | Automotive | Automotive |
| Capacitance @ Frequency | 152pF @ 1MHz | - | - | 35pF @ 1MHz | 152pF @ 1MHz |
| Operating Temperature | -55°C ~ 150°C (TA) | - | - | -55°C ~ 150°C (TA) | -65°C ~ 150°C (TA) |
| Mounting Type | Surface Mount | - | - | Surface Mount | Surface Mount |
| Package / Case | 2-XDFN | - | - | 2-XDFN | SOD-882 |
| Supplier Device Package | DFN1006D-2 | - | - | DFN1006D-2 | DFN1006-2 |
