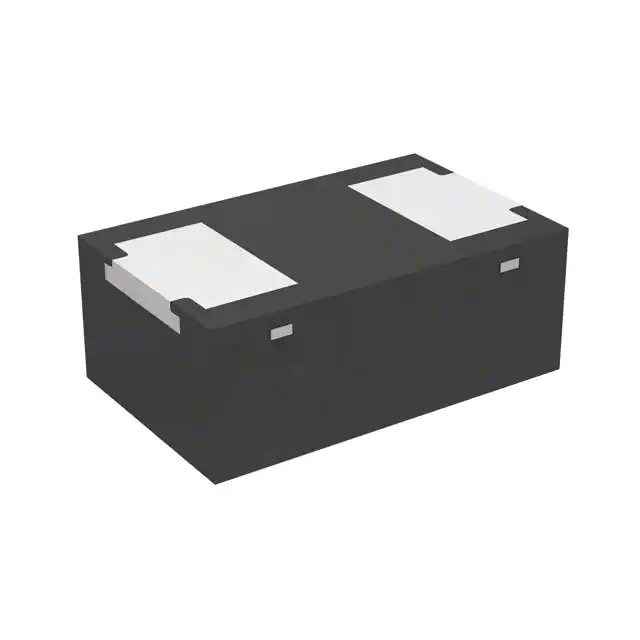

| Part Number | PESD5V0S1BLD,315 | PESD5V0S1ULD,315 | PESD5V0U1BLD,315 | PESD5V0F1BLD,315 | PESD5V0S1BL,315 |
|---|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | - | 1 | - | - | - |
| Bidirectional Channels | 1 | - | 1 | 1 | 1 |
| Voltage - Reverse Standoff (Typ) | 5V (Max) | 5V (Max) | 5V (Max) | 5.5V (Max) | 5V (Max) |
| Voltage - Breakdown (Min) | 5.5V | 6.4V | 5.5V | 6V | 5.5V |
| Voltage - Clamping (Max) @ Ipp | 14V | 20V | - | 15V | 14V |
| Current - Peak Pulse (10/1000µs) | 12A (8/20µs) | 15A (8/20µs) | - | 2.5A (8/20µs) | 12A (8/20µs) |
| Power - Peak Pulse | 130W | 150W | - | - | 130W |
| Power Line Protection | No | No | No | No | No |
| Applications | Automotive | Automotive | Automotive | Automotive | General Purpose |
| Capacitance @ Frequency | 35pF @ 1MHz | 152pF @ 1MHz | 2.9pF @ 1MHz | 0.4pF @ 1MHz | 35pF @ 1MHz |
| Operating Temperature | -55°C ~ 150°C (TA) | -55°C ~ 150°C (TA) | -55°C ~ 150°C (TA) | -40°C ~ 125°C (TA) | -65°C ~ 150°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2-XDFN | 2-XDFN | 2-XDFN | 2-XDFN | SOD-882 |
| Supplier Device Package | DFN1006D-2 | DFN1006D-2 | DFN1006D-2 | DFN1006D-2 | DFN1006-2 |
