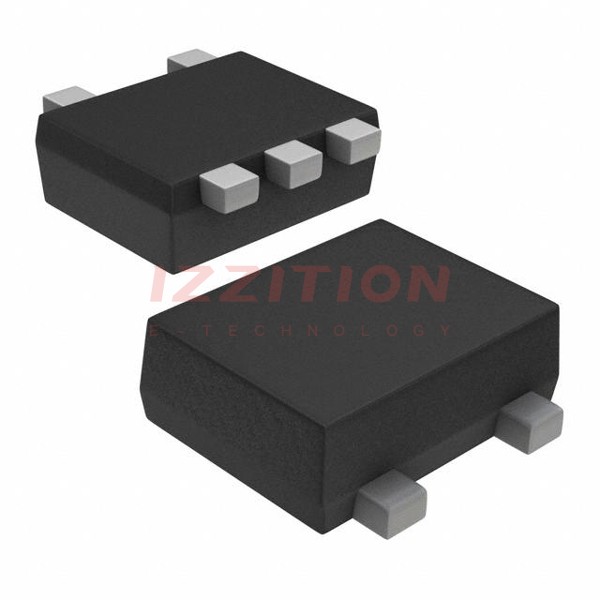

| Part Number | PESD5V0L4UW,115 | PESD5V0V4UW,115 | PESD5V0L4UF,115 | PESD5V0L4UG,115 |
|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 4 | 4 | 4 | 4 |
| Bidirectional Channels | - | - | - | - |
| Voltage - Reverse Standoff (Typ) | 5V (Max) | 5V (Max) | 5V (Max) | 5V (Max) |
| Voltage - Breakdown (Min) | 6.46V | 6.4V | 6.46V | 6.46V |
| Voltage - Clamping (Max) @ Ipp | 13V | 13V | 13V | 13V |
| Current - Peak Pulse (10/1000µs) | 2.5A (8/20µs) | 1.5A (8/20µs) | 2.5A (8/20µs) | 2.5A (8/20µs) |
| Power - Peak Pulse | 30W | 16W | 30W | 30W |
| Power Line Protection | No | No | No | No |
| Applications | General Purpose | General Purpose | General Purpose | General Purpose |
| Capacitance @ Frequency | 16pF @ 1MHz | 12pF @ 1MHz | 16pF @ 1MHz | 16pF @ 1MHz |
| Operating Temperature | -65°C ~ 150°C (TA) | -65°C ~ 150°C (TA) | -65°C ~ 150°C (TA) | -65°C ~ 150°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SOT-665 | SOT-665 | 6-XFDFN | 5-TSSOP, SC-70-5, SOT-353 |
| Supplier Device Package | SOT-665 | SOT-665 | 6-XSON, SOT886 (1.45x1) | 5-TSSOP |
