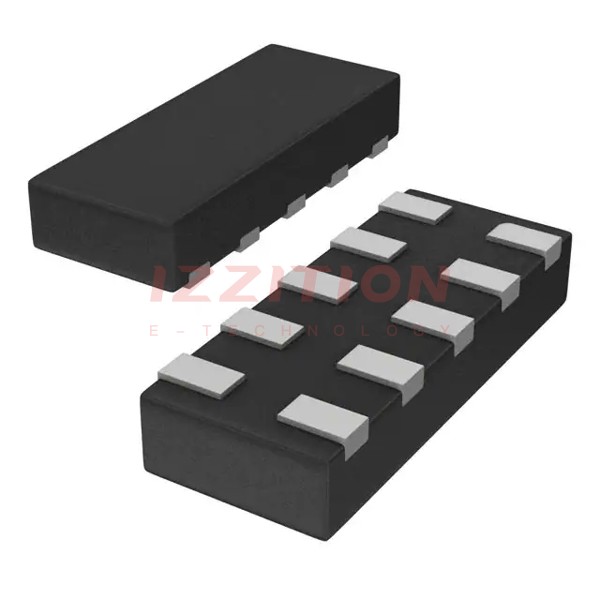

| Part Number | PESD4USB5U-TBRX | PESD4USB5U-TBSX | PESD4USB3U-TBRX | PESD4USB5R-TBRX |
|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active | Active |
| Type | - | Zener | - | - |
| Unidirectional Channels | - | 4 | - | - |
| Bidirectional Channels | 4 | - | 4 | - |
| Voltage - Reverse Standoff (Typ) | 5.5V | 5V (Max) | 3.3V | - |
| Voltage - Breakdown (Min) | - | 6V | - | - |
| Voltage - Clamping (Max) @ Ipp | - | 3.5V (Typ) | - | - |
| Current - Peak Pulse (10/1000µs) | 7A (8/20µs) | 7A (8/20µs) | 7A (8/20µs) | - |
| Power - Peak Pulse | - | - | - | - |
| Power Line Protection | No | No | No | No |
| Applications | Automotive | Automotive, HDMI, USB | Automotive | - |
| Capacitance @ Frequency | 0.34pF @ 1MHz | 0.4pF @ 1MHz | 0.34pF @ 1MHz | - |
| Operating Temperature | - | -55°C ~ 150°C (TA) | - | - |
| Mounting Type | Surface Mount | Surface Mount, Wettable Flank | Surface Mount | Surface Mount |
| Package / Case | 10-XFDFN | 10-WFDFN | 10-XFDFN | 10-XFDFN |
| Supplier Device Package | DFN2510A-10 | DFN2510D-10 | DFN2510A-10 | DFN2510A-10 |
