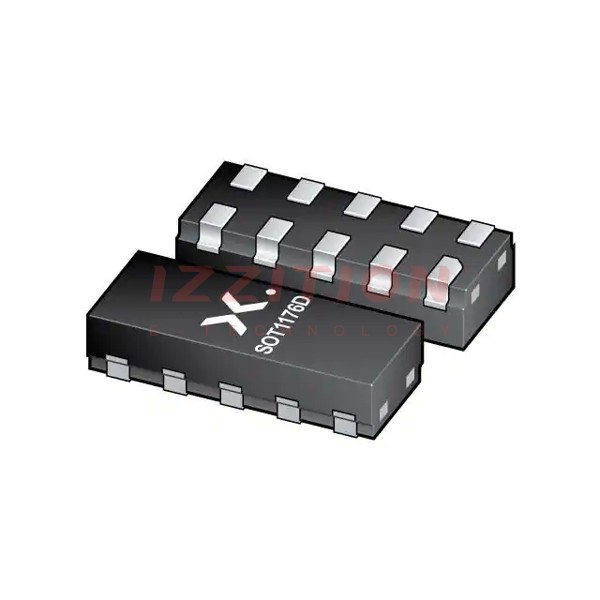

| Part Number | PESD4USB5B-TBSX | PESD4USB5U-TBSX | PESD4USB5B-TTSX | PESD4USB3B-TBSX | PESD4USB5B-TBSAX |
|---|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 4 | 4 | 4 | 4 | 4 |
| Bidirectional Channels | - | - | - | - | - |
| Voltage - Reverse Standoff (Typ) | 5V (Max) | 5V (Max) | 5V (Max) | 3.3V (Max) | 5V (Max) |
| Voltage - Breakdown (Min) | 6V | 6V | 6V | 6V | 6V |
| Voltage - Clamping (Max) @ Ipp | 5.5V (Typ) | 3.5V (Typ) | 5.5V (Typ) | 5.5V (Typ) | 5.5V (Typ) |
| Current - Peak Pulse (10/1000µs) | 7A (8/20µs) | 7A (8/20µs) | 7A (8/20µs) | 7A (8/20µs) | 7A (8/20µs) |
| Power - Peak Pulse | - | - | - | - | - |
| Power Line Protection | No | No | No | No | No |
| Applications | Automotive, HDMI, USB | Automotive, HDMI, USB | Automotive, HDMI, USB | Automotive, HDMI, USB | Automotive, HDMI, USB |
| Capacitance @ Frequency | 0.24pF @ 1MHz | 0.4pF @ 1MHz | 0.24pF @ 1MHz | 0.24pF @ 1MHz | 0.24pF @ 1MHz |
| Operating Temperature | -55°C ~ 150°C (TA) | -55°C ~ 150°C (TA) | -55°C ~ 150°C (TA) | -55°C ~ 150°C (TA) | -55°C ~ 150°C (TA) |
| Mounting Type | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank |
| Package / Case | 10-WFDFN | 10-WFDFN | 10-WFDFN | 10-WFDFN | 10-WFDFN |
| Supplier Device Package | DFN2510D-10 | DFN2510D-10 | DFN2510D-10 | DFN2510D-10 | DFN2510D-10 |
