Please send RFQ , we will respond immediately.

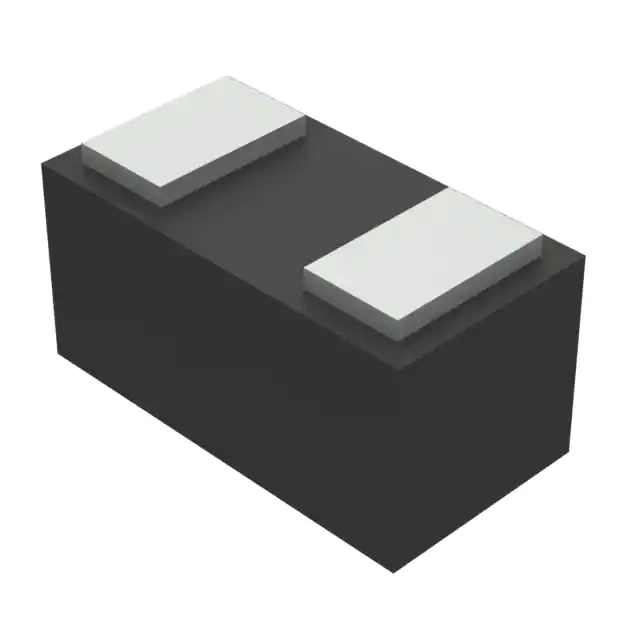

| Part Number | PESD3V3Z1BSFYL | PESD3V3C1BSFYL | PESD3V3S1BSFYL | PESD3V3Y1BSFYL | PESD3V3Z1BCSFYL |
|---|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener | Zener |
| Unidirectional Channels | - | - | - | - | - |
| Bidirectional Channels | 1 | 1 | 1 | 1 | 1 |
| Voltage - Reverse Standoff (Typ) | 3.3V (Max) | 3.3V (Max) | 3.3V (Max) | 3.3V (Max) | 3.3V (Max) |
| Voltage - Breakdown (Min) | 6.9V (Typ) | 6V | - | 4.2V | 6.8V (Typ) |
| Voltage - Clamping (Max) @ Ipp | 5.3V | 5.5V | 6V (Typ) | 3.7V (Typ) | 4.8V (Typ) |
| Current - Peak Pulse (10/1000µs) | 9.5A (8/20µs) | 9A (8/20µs) | 12A (8/20µs) | - | 15A (8/20µs) |
| Power - Peak Pulse | - | - | - | - | - |
| Power Line Protection | No | No | No | No | No |
| Applications | Automotive | General Purpose | General Purpose | HDMI2, USB 3.2 | General Purpose |
| Capacitance @ Frequency | 0.28pF @ 1MHz | 0.2pF @ 1MHz | 10.7pF @ 1MHz | 0.29pF @ 1MHz | 0.45pF @ 1MHz |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) | 0201 (0603 Metric) |
| Supplier Device Package | DSN0603-2 | DSN0603-2 | DSN0603-2 | DSN0603-2 | DSN0603-2 |
