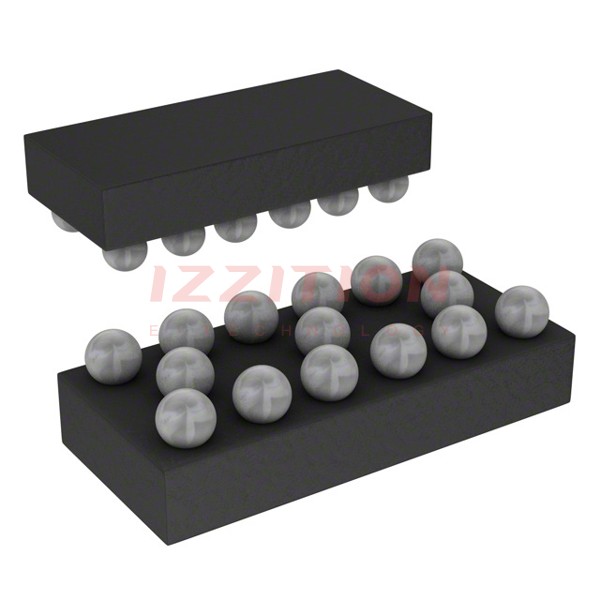

| Part Number | PESD3USB3SZ | PESD1USB3SZ | PESD2USB3SZ | PESD3USB30Z |
|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 6 | 2 | 4 | 6 |
| Bidirectional Channels | - | - | - | - |
| Voltage - Reverse Standoff (Typ) | 5.5V (Max) | 5.5V (Max) | 5.5V (Max) | 5.5V (Max) |
| Voltage - Breakdown (Min) | 6V | 6V | 6V | 6V |
| Voltage - Clamping (Max) @ Ipp | - | - | - | - |
| Current - Peak Pulse (10/1000µs) | 7A (8/20µs) | 7A (8/20µs) | 7A (8/20µs) | 8A (8/20µs) |
| Power - Peak Pulse | - | - | - | - |
| Power Line Protection | No | No | No | No |
| Applications | HDMI | HDMI | HDMI | HDMI |
| Capacitance @ Frequency | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 15-UFBGA, WLCSP | 5-UFBGA, WLCSP | 10-UFBGA, WLCSP | 15-UFBGA, WLCSP |
| Supplier Device Package | 15-WLCSP (2.37x1.17) | 5-WLCSP (0.77x1.17) | 10-WLCSP (1.57x1.17) | 15-WLCSP (2.37x1.17) |
