| Part Number | PESD3USB3S/CX | PESD1USB3S/CX | PESD2USB3S/CX | PESD3USB3B/CX |
|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | Zener | Zener | Zener | Zener |
| Unidirectional Channels | 2 | 2 | 2 | - |
| Bidirectional Channels | - | - | - | 1 |
| Voltage - Reverse Standoff (Typ) | - | - | - | 4V (Max) |
| Voltage - Breakdown (Min) | 6V | 6V | 6V | 4.2V |
| Voltage - Clamping (Max) @ Ipp | - | - | - | 3.7V (Typ) |
| Current - Peak Pulse (10/1000µs) | 8A (8/20µs) | 8A (8/20µs) | 8A (8/20µs) | 4A (8/20µs) |
| Power - Peak Pulse | - | - | - | - |
| Power Line Protection | No | No | No | No |
| Applications | HDMI, USB | HDMI, USB | HDMI, USB | General Purpose |
| Capacitance @ Frequency | 0.45pF @ 1MHz | 0.45pF @ 1MHz | 0.45pF @ 1MHz | 0.24pF @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

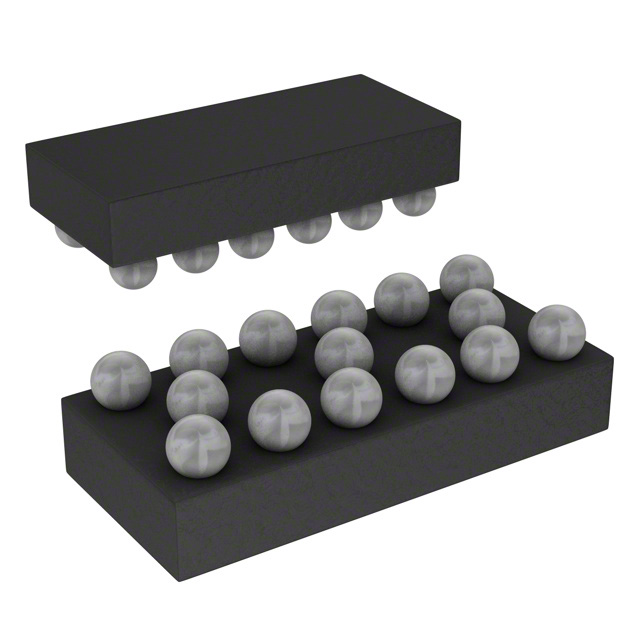

| Package / Case | 15-UFBGA, WLCSP | 5-UFBGA, WLCSP | 10-UFBGA, WLCSP | 0201 (0603 Metric) |
| Supplier Device Package | 15-WLCSP (2.37x1.17) | 5-WLCSP (0.77x1.17) | 10-WLCSP (1.57x1.17) | DSN0603-2 |
