| Part Number | PESD2USB3B/CZ | PESD2USB3S/CZ | PESD1USB3B/CZ | PESD2USB3B/CX |
|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active | Obsolete |
| Type | Zener | Zener | Zener | - |
| Unidirectional Channels | - | 2 | - | - |
| Bidirectional Channels | 2 | - | 1 | - |
| Voltage - Reverse Standoff (Typ) | 4V (Max) | 5V (Max) | 4V (Max) | - |
| Voltage - Breakdown (Min) | 6V | 6V | 6V | - |
| Voltage - Clamping (Max) @ Ipp | - | - | - | - |
| Current - Peak Pulse (10/1000µs) | 9.5A (8/20µs) | 8A (8/20µs) | 9.5A (8/20µs) | - |
| Power - Peak Pulse | - | - | - | - |
| Power Line Protection | No | No | No | - |
| Applications | HDMI, USB | HDMI, USB | HDMI, USB | - |
| Capacitance @ Frequency | 0.29pF @ 1MHz | 0.45pF @ 1MHz | 0.29pF @ 1MHz | - |
| Operating Temperature | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

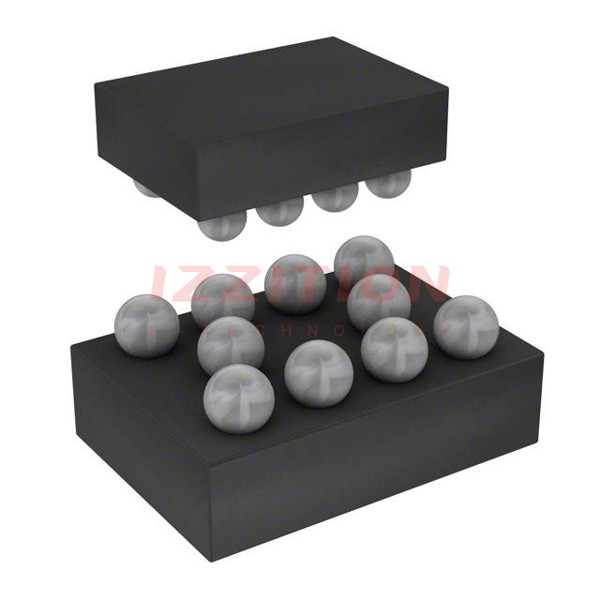

| Package / Case | 10-UFBGA, WLCSP | 10-UFBGA, WLCSP | 5-UFBGA, WLCSP | 10-UFBGA, WLCSP |
| Supplier Device Package | 10-WLCSP (1.57x1.17) | 10-WLCSP (1.57x1.17) | 5-WLCSP (0.77x1.17) | 10-WLCSP (1.57x1.17) |
