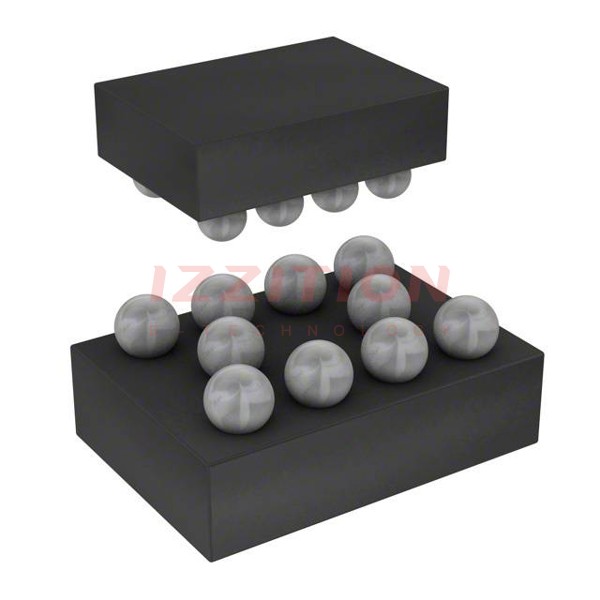

| Part Number | PESD2USB3B/CX | PESD2USB3S/CX | PESD3USB3B/CX | PESD2USB3B/CZ | PESD1USB3B/CX |
|---|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Active | Obsolete |
| Type | - | Zener | Zener | Zener | - |
| Unidirectional Channels | - | 2 | - | - | - |
| Bidirectional Channels | - | - | 1 | 2 | - |
| Voltage - Reverse Standoff (Typ) | - | - | 4V (Max) | 4V (Max) | - |
| Voltage - Breakdown (Min) | - | 6V | 4.2V | 6V | - |
| Voltage - Clamping (Max) @ Ipp | - | - | 3.7V (Typ) | - | - |
| Current - Peak Pulse (10/1000µs) | - | 8A (8/20µs) | 4A (8/20µs) | 9.5A (8/20µs) | - |
| Power - Peak Pulse | - | - | - | - | - |
| Power Line Protection | - | No | No | No | - |
| Applications | - | HDMI, USB | General Purpose | HDMI, USB | - |
| Capacitance @ Frequency | - | 0.45pF @ 1MHz | 0.24pF @ 1MHz | 0.29pF @ 1MHz | - |
| Operating Temperature | - | -40°C ~ 85°C (TA) | -40°C ~ 125°C (TA) | -40°C ~ 125°C (TA) | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 10-UFBGA, WLCSP | 10-UFBGA, WLCSP | 0201 (0603 Metric) | 10-UFBGA, WLCSP | 5-UFBGA, WLCSP |
| Supplier Device Package | 10-WLCSP (1.57x1.17) | 10-WLCSP (1.57x1.17) | DSN0603-2 | 10-WLCSP (1.57x1.17) | 5-WLCSP (0.77x1.17) |
