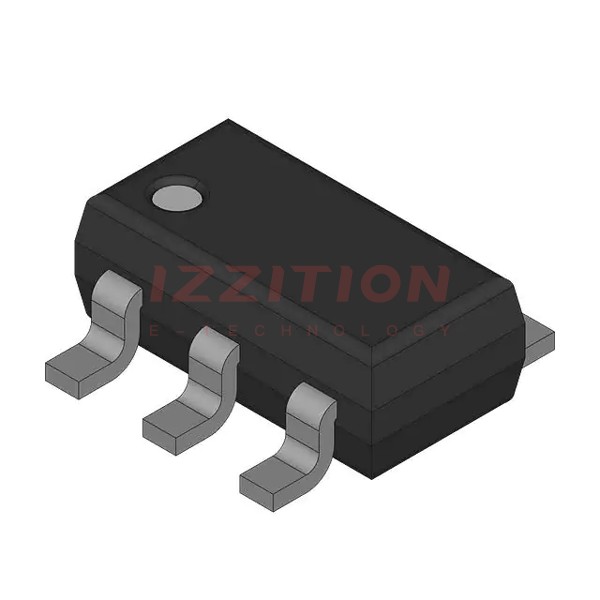

| Part Number | PESD2ETH-ADX | PESD2ETH-DX | PESD2ETH-ADF |
|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active |
| Type | - | Steering (Rail to Rail) | Steering (Rail to Rail) |
| Unidirectional Channels | - | 4 | 4 |
| Bidirectional Channels | - | - | - |
| Voltage - Reverse Standoff (Typ) | - | 5.5V (Max) | 5.5V (Max) |
| Voltage - Breakdown (Min) | - | 6V | 6V |
| Voltage - Clamping (Max) @ Ipp | - | 11.8V (Typ) | 12.3V (Typ) |
| Current - Peak Pulse (10/1000µs) | - | 2.5A (8/20µs) | 3.5A (8/20µs) |
| Power - Peak Pulse | - | - | - |
| Power Line Protection | - | Yes | Yes |
| Applications | - | Automotive | Automotive |
| Capacitance @ Frequency | - | 16pF @ 1MHz | 22pF @ 1MHz |
| Operating Temperature | - | -55°C ~ 150°C (TA) | -55°C ~ 150°C (TA) |
| Mounting Type | - | Surface Mount | Surface Mount |
| Package / Case | - | SC-74, SOT-457 | SC-74, SOT-457 |
| Supplier Device Package | - | 6-TSOP | 6-TSOP |
