| Part Number | PESD2CANFD24U-QBZ | PESD2CANFD24V-QBZ | PESD2CANFD24U-QCZ | PESD2CANFD27U-QBZ |
|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active | Active |
| Type | Zener | Zener | Zener | Zener |
| Unidirectional Channels | - | - | - | - |
| Bidirectional Channels | 2 | 2 | 2 | 2 |
| Voltage - Reverse Standoff (Typ) | 24V (Max) | 24V (Max) | 24V (Max) | 27V (Max) |
| Voltage - Breakdown (Min) | 25.5V | 25.5V | 25.5V | 28V |
| Voltage - Clamping (Max) @ Ipp | 43V | 42V | 43V | 45V |
| Current - Peak Pulse (10/1000µs) | 1.9A (8/20µs) | 2.6A (8/20µs) | 1.9A (8/20µs) | 1.8A (8/20µs) |
| Power - Peak Pulse | - | - | - | - |
| Power Line Protection | No | No | No | No |
| Applications | Automotive, CAN | Automotive, CAN | Automotive, CAN | Automotive, CAN |
| Capacitance @ Frequency | 3.2pF @ 1MHz | 5.2pF @ 1MHz | 3.2pF @ 1MHz | 3.6pF @ 1MHz |
| Operating Temperature | -55°C ~ 150°C (TA) | -55°C ~ 150°C (TA) | -55°C ~ 150°C (TA) | -55°C ~ 150°C (TA) |
| Mounting Type | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank |
| Package / Case | 3-XDFN Exposed Pad | 3-XDFN Exposed Pad | 3-XDFN Exposed Pad | 3-XDFN Exposed Pad |

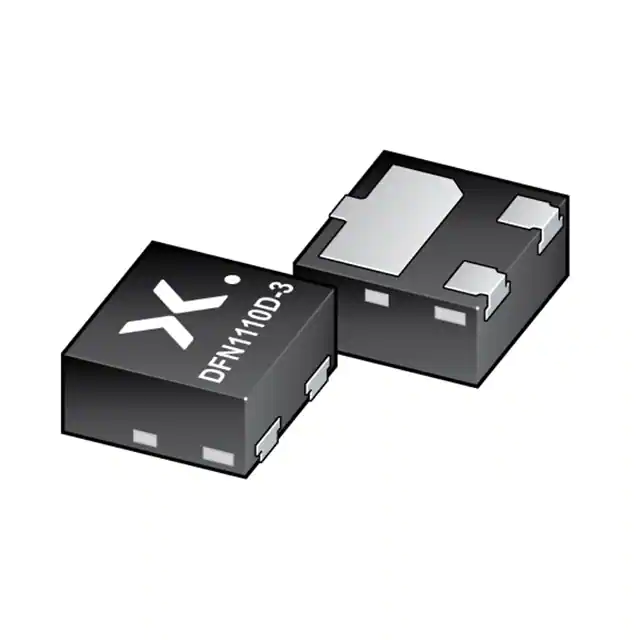

| Supplier Device Package | DFN1110D-3 | DFN1110D-3 | DFN1412D-3 | DFN1110D-3 |
