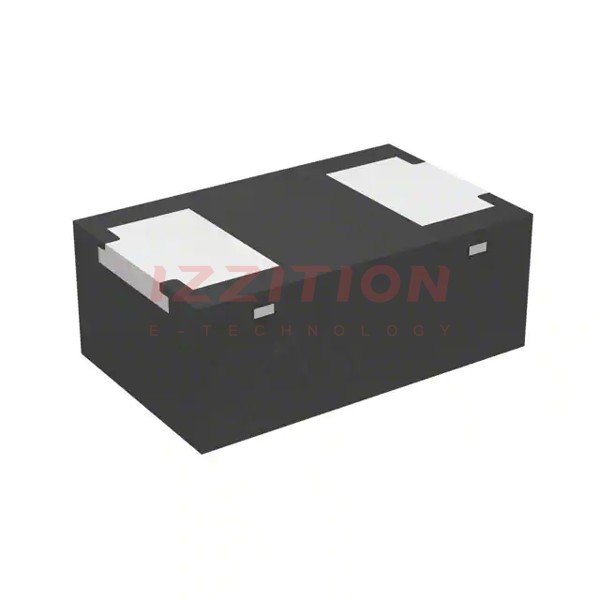

| Part Number | PESD15VS1ULD,315 | PESD12VS1ULD,315 | PESD15VS1UL,315 |
|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active |
| Type | Zener | Zener | Zener |
| Unidirectional Channels | 1 | 1 | 1 |
| Bidirectional Channels | - | - | - |
| Voltage - Reverse Standoff (Typ) | 15V (Max) | 12V (Max) | 15V (Max) |
| Voltage - Breakdown (Min) | 17.6V | 14.7V | 17.6V |
| Voltage - Clamping (Max) @ Ipp | 40V | 35V | 40V |
| Current - Peak Pulse (10/1000µs) | 5A (8/20µs) | 5A (8/20µs) | 5A (8/20µs) |
| Power - Peak Pulse | 150W | 150W | 150W |
| Power Line Protection | No | No | No |
| Applications | Automotive | Automotive | Automotive |
| Capacitance @ Frequency | 32pF @ 1MHz | 38pF @ 1MHz | 32pF @ 1MHz |
| Operating Temperature | -55°C ~ 150°C (TA) | -55°C ~ 150°C (TA) | -65°C ~ 150°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 2-XDFN | 2-XDFN | SOD-882 |
| Supplier Device Package | DFN1006D-2 | DFN1006D-2 | DFN1006-2 |
