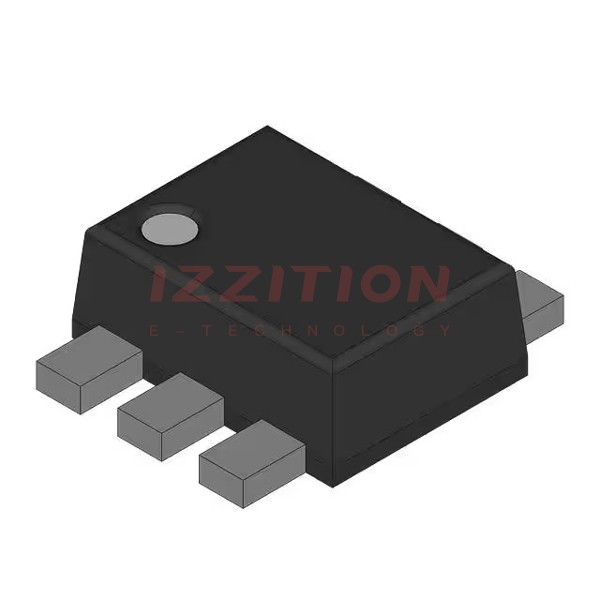

| Part Number | PEMH10115 | PEMB10115 | PEMH1,115 | PEMH10,115 |
|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | NXP USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Not For New Designs | Not For New Designs |
| Transistor Type | 2 NPN - Pre-Biased (Dual) | 2 PNP Pre-Biased (Dual) | 2 NPN - Pre-Biased (Dual) | 2 NPN - Pre-Biased (Dual) |
| Current - Collector (Ic) (Max) | 100mA | 100mA | 100mA | 100mA |
| Voltage - Collector Emitter Breakdown (Max) | 50V | 50V | 50V | 50V |
| Resistor - Base (R1) | 2.2kOhms | 2.2kOhms | 22kOhms | 2.2kOhms |
| Resistor - Emitter Base (R2) | 47kOhms | 47kOhms | 22kOhms | 47kOhms |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 10mA, 5V | 100 @ 10mA, 5V | 60 @ 5mA, 5V | 100 @ 100mA, 5V |
| Vce Saturation (Max) @ Ib, Ic | 100mV @ 250µA, 5mA | 100mV @ 250µA, 5mA | 150mV @ 500µA, 10mA | 100mV @ 250µA, 5mA |
| Current - Collector Cutoff (Max) | 100nA | 1µA | 1µA | 1µA |
| Frequency - Transition | 230MHz | - | - | - |
| Power - Max | 300mW | 300mW | 300mW | 300mW |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SOT-563, SOT-666 | SOT-563, SOT-666 | SOT-563, SOT-666 | SOT-563, SOT-666 |
| Supplier Device Package | SOT-666 | SOT-666 | SOT-666 | SOT-666 |
