Please send RFQ , we will respond immediately.

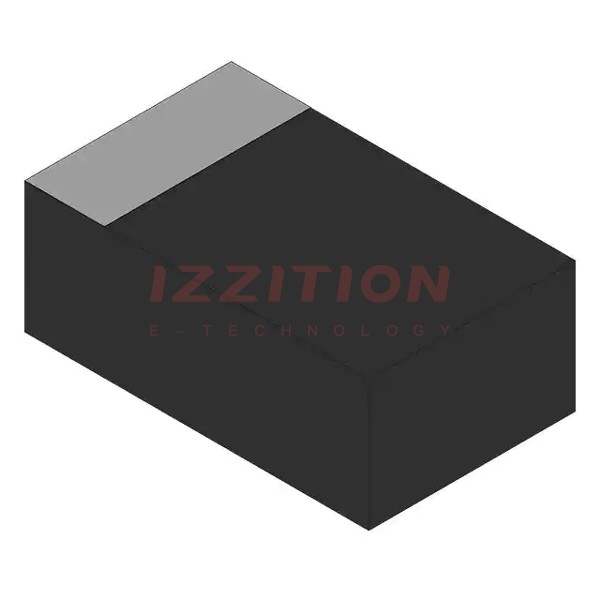

| Part Number | PDTC144TMB,315 | PDTC144WMB,315 | PDTC144VMB,315 | PDTC124TMB,315 | PDTC144EMB,315 | PDTC144TM,315 |
|---|---|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | NXP USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | NXP Semiconductors |
| Product Status | Active | Active | Active | Active | Active | Active |
| Transistor Type | - | NPN - Pre-Biased | NPN - Pre-Biased | - | NPN - Pre-Biased | - |
| Current - Collector (Ic) (Max) | - | 100 mA | 100 mA | - | 100 mA | - |
| Voltage - Collector Emitter Breakdown (Max) | - | 50 V | 50 V | - | 50 V | - |
| Resistor - Base (R1) | - | 47 kOhms | 47 kOhms | - | 47 kOhms | - |
| Resistor - Emitter Base (R2) | - | 22 kOhms | 10 kOhms | - | 47 kOhms | - |
| DC Current Gain (hFE) (Min) @ Ic, Vce | - | 60 @ 5mA, 5V | 40 @ 5mA, 5V | - | 80 @ 5mA, 5V | - |
| Vce Saturation (Max) @ Ib, Ic | - | 150mV @ 500µA, 10mA | 150mV @ 500µA, 10mA | - | 150mV @ 500µA, 10mA | - |
| Current - Collector Cutoff (Max) | - | 1µA | 1µA | - | 1µA | - |
| Frequency - Transition | - | 230 MHz | 230 MHz | - | 230 MHz | - |
| Power - Max | - | 250 mW | 250 mW | - | 250 mW | - |
| Mounting Type | - | Surface Mount | Surface Mount | - | Surface Mount | - |
| Package / Case | - | SC-101, SOT-883 | 3-XFDFN | - | 3-XFDFN | - |
| Supplier Device Package | - | DFN1006B-3 | DFN1006B-3 | - | DFN1006B-3 | - |
