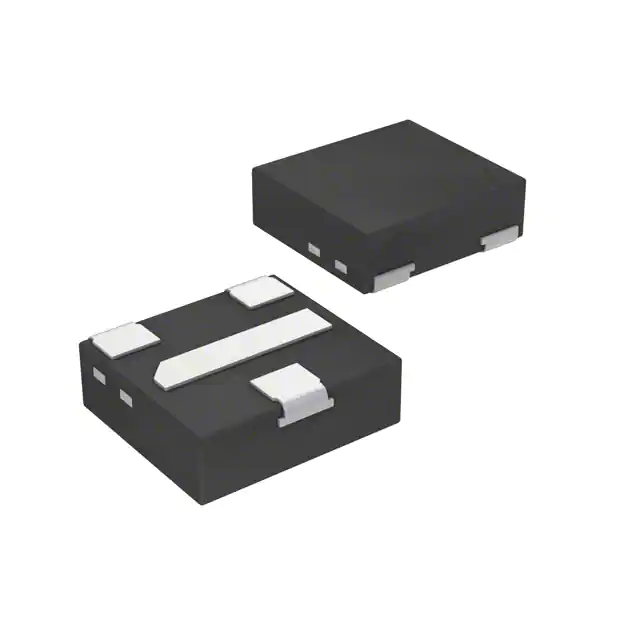

| Part Number | PDTC144EQAZ | PDTC144EQCZ | PDTC144EQBZ | PDTC124EQAZ | PDTC143EQAZ |
|---|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | NXP Semiconductors |
| Product Status | Active | Active | Active | Active | Active |
| Transistor Type | NPN - Pre-Biased | NPN - Pre-Biased | PNP - Pre-Biased | NPN - Pre-Biased | - |
| Current - Collector (Ic) (Max) | 100 mA | 100 mA | 100 mA | 100 mA | - |
| Voltage - Collector Emitter Breakdown (Max) | 50 V | 50 V | 50 V | 50 V | - |
| Resistor - Base (R1) | 47 kOhms | 47 kOhms | 47 kOhms | 22 kOhms | - |
| Resistor - Emitter Base (R2) | 47 kOhms | 47 kOhms | 47 kOhms | 22 kOhms | - |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 80 @ 5mA, 5V | 80 @ 5mA, 5V | 80 @ 5mA, 5V | 60 @ 5mA, 5V | - |
| Vce Saturation (Max) @ Ib, Ic | 150mV @ 500µA, 10mA | 100mV @ 500µA, 10mA | 100mV @ 500µA, 10mA | 150mV @ 500µA, 10mA | - |
| Current - Collector Cutoff (Max) | 1µA | 100nA | 100nA | 1µA | - |
| Frequency - Transition | 230 MHz | 230 MHz | 180 MHz | 230 MHz | - |
| Power - Max | 280 mW | 360 mW | 340 mW | 280 mW | - |
| Mounting Type | Surface Mount | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount | - |
| Package / Case | 3-XDFN Exposed Pad | 3-XDFN Exposed Pad | 3-XDFN Exposed Pad | 3-XDFN Exposed Pad | - |
| Supplier Device Package | DFN1010D-3 | DFN1412D-3 | DFN1110D-3 | DFN1010D-3 | - |
