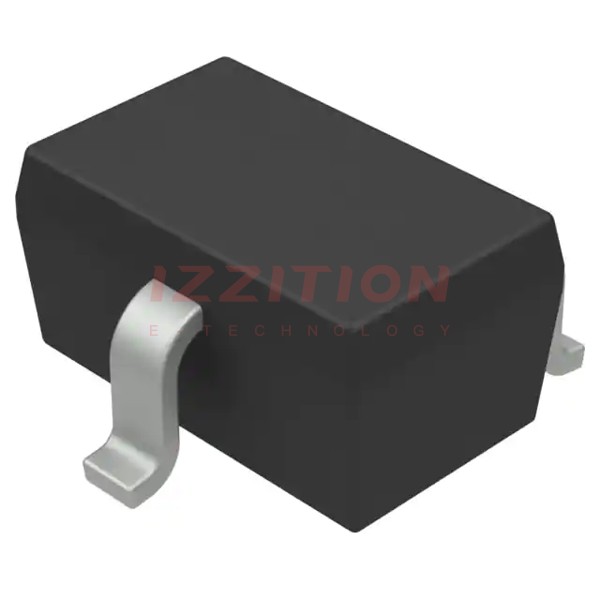

| Part Number | PDTC143EU,115 | PDTC144EU,115 | PDTC143XU,115 | PDTC123EU,115 | PDTC143EE,115 | PDTC143EK,115 |
|---|---|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Active | Active | Active | Active | Obsolete | Obsolete |
| Transistor Type | NPN - Pre-Biased | NPN - Pre-Biased | NPN - Pre-Biased | NPN - Pre-Biased | NPN - Pre-Biased | NPN - Pre-Biased |
| Current - Collector (Ic) (Max) | 100 mA | 100 mA | 100 mA | 100 mA | 100 mA | 100 mA |
| Voltage - Collector Emitter Breakdown (Max) | 50 V | 50 V | 50 V | 50 V | 50 V | 50 V |
| Resistor - Base (R1) | 4.7 kOhms | 47 kOhms | 4.7 kOhms | 2.2 kOhms | 4.7 kOhms | 4.7 kOhms |
| Resistor - Emitter Base (R2) | 4.7 kOhms | 47 kOhms | 10 kOhms | 2.2 kOhms | 4.7 kOhms | 4.7 kOhms |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 30 @ 10mA, 5V | 80 @ 5mA, 5V | 50 @ 10mA, 5V | 30 @ 20mA, 5V | 30 @ 10mA, 5V | 30 @ 10mA, 5V |
| Vce Saturation (Max) @ Ib, Ic | 150mV @ 500µA, 10mA | 150mV @ 500µA, 10mA | 100mV @ 500µA, 10mA | 150mV @ 500µA, 10mA | 150mV @ 500µA, 10mA | 150mV @ 500µA, 10mA |
| Current - Collector Cutoff (Max) | 1µA | 1µA | 1µA | 1µA | 1µA | 1µA |
| Frequency - Transition | - | - | 230 MHz | - | - | - |
| Power - Max | 200 mW | 200 mW | 200 mW | 200 mW | 150 mW | 250 mW |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SC-70, SOT-323 | SC-70, SOT-323 | SC-70, SOT-323 | SC-70, SOT-323 | SC-75, SOT-416 | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SOT-323 | SOT-323 | SOT-323 | SOT-323 | SC-75 | SMT3; MPAK |
