| Part Number | PDTC143EQCZ | PDTC144EQCZ | PDTC143XQCZ | PDTC143ZQCZ | PDTC143EQAZ | PDTC143EQBZ |
|---|---|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | NXP Semiconductors | Nexperia USA Inc. |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Active | Obsolete |
| Transistor Type | NPN - Pre-Biased | NPN - Pre-Biased | NPN - Pre-Biased | NPN - Pre-Biased | - | PNP - Pre-Biased |
| Current - Collector (Ic) (Max) | 100 mA | 100 mA | 100 mA | 100 mA | - | 100 mA |
| Voltage - Collector Emitter Breakdown (Max) | 50 V | 50 V | 50 V | 50 V | - | 50 V |
| Resistor - Base (R1) | 4.7 kOhms | 47 kOhms | 4.7 kOhms | 4.7 kOhms | - | 4.7 kOhms |
| Resistor - Emitter Base (R2) | 4.7 kOhms | 47 kOhms | 10 kOhms | 47 kOhms | - | 4.7 kOhms |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 30 @ 10mA, 5V | 80 @ 5mA, 5V | 50 @ 10mA, 5V | 100 @ 10mA, 5V | - | 30 @ 10mA, 5V |
| Vce Saturation (Max) @ Ib, Ic | 100mV @ 500µA, 10mA | 100mV @ 500µA, 10mA | 100mV @ 500µA, 10mA | 100mV @ 250µA, 5mA | - | 100mV @ 500µA, 10mA |
| Current - Collector Cutoff (Max) | 100nA | 100nA | 100nA | 100nA | - | 100nA |
| Frequency - Transition | 230 MHz | 230 MHz | 230 MHz | 230 MHz | - | 180 MHz |
| Power - Max | 360 mW | 360 mW | 360 mW | 360 mW | - | 340 mW |
| Mounting Type | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | - | Surface Mount, Wettable Flank |

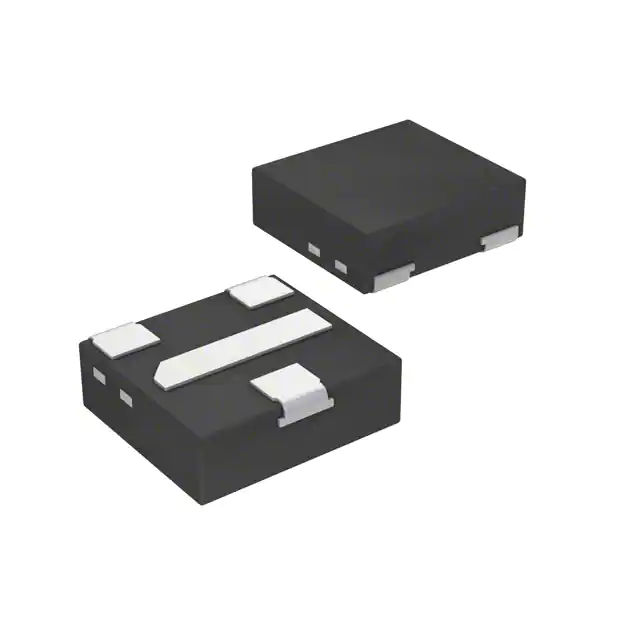

| Package / Case | 3-XDFN Exposed Pad | 3-XDFN Exposed Pad | 3-XDFN Exposed Pad | 3-XDFN Exposed Pad | - | 3-XDFN Exposed Pad |
| Supplier Device Package | DFN1412D-3 | DFN1412D-3 | DFN1412D-3 | DFN1412D-3 | - | DFN1110D-3 |
