Please send RFQ , we will respond immediately.

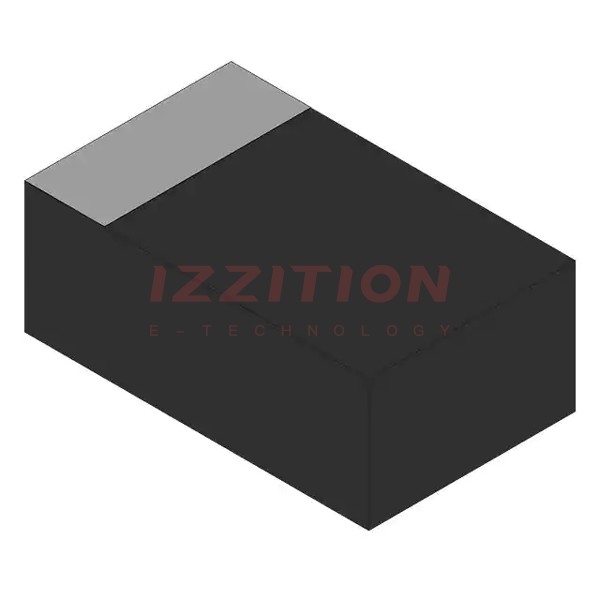

| Part Number | PDTC143EMB,315 | PDTC143XMB,315 | PDTC144EMB,315 | PDTC143EM,315 |
|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active | Active |
| Transistor Type | - | - | NPN - Pre-Biased | NPN - Pre-Biased |
| Current - Collector (Ic) (Max) | - | - | 100 mA | 100 mA |
| Voltage - Collector Emitter Breakdown (Max) | - | - | 50 V | 50 V |
| Resistor - Base (R1) | - | - | 47 kOhms | 4.7 kOhms |
| Resistor - Emitter Base (R2) | - | - | 47 kOhms | 4.7 kOhms |
| DC Current Gain (hFE) (Min) @ Ic, Vce | - | - | 80 @ 5mA, 5V | 30 @ 10mA, 5V |
| Vce Saturation (Max) @ Ib, Ic | - | - | 150mV @ 500µA, 10mA | 150mV @ 500µA, 10mA |
| Current - Collector Cutoff (Max) | - | - | 1µA | 1µA |
| Frequency - Transition | - | - | 230 MHz | - |
| Power - Max | - | - | 250 mW | 250 mW |
| Mounting Type | - | - | Surface Mount | Surface Mount |
| Package / Case | - | - | 3-XFDFN | SC-101, SOT-883 |
| Supplier Device Package | - | - | DFN1006B-3 | SOT-883 |
