| Part Number | PDTC124EQBZ | PDTC124EQCZ | PDTC124XQBZ | PDTC144EQBZ | PDTC114EQBZ | PDTC124EQAZ |
|---|---|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Active | Active | Active |
| Transistor Type | PNP - Pre-Biased | NPN - Pre-Biased | PNP - Pre-Biased | PNP - Pre-Biased | PNP - Pre-Biased | NPN - Pre-Biased |
| Current - Collector (Ic) (Max) | 100 mA | 100 mA | 100 mA | 100 mA | 100 mA | 100 mA |
| Voltage - Collector Emitter Breakdown (Max) | 50 V | 50 V | 50 V | 50 V | 50 V | 50 V |
| Resistor - Base (R1) | 22 kOhms | 22 kOhms | 22 kOhms | 47 kOhms | 10 kOhms | 22 kOhms |
| Resistor - Emitter Base (R2) | 22 kOhms | 22 kOhms | 47 kOhms | 47 kOhms | 10 kOhms | 22 kOhms |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 60 @ 5mA, 5V | 60 @ 5mA, 5V | 80 @ 5mA, 5V | 80 @ 5mA, 5V | 30 @ 5mA, 5V | 60 @ 5mA, 5V |
| Vce Saturation (Max) @ Ib, Ic | 100mV @ 500µA, 10mA | 100mV @ 500µA, 10mA | 100mV @ 250µA, 5mA | 100mV @ 500µA, 10mA | 100mV @ 500µA, 10mA | 150mV @ 500µA, 10mA |
| Current - Collector Cutoff (Max) | 100nA | 100nA | 100nA | 100nA | 100nA | 1µA |
| Frequency - Transition | 180 MHz | 230 MHz | 180 MHz | 180 MHz | 180 MHz | 230 MHz |
| Power - Max | 340 mW | 360 mW | 340 mW | 340 mW | 340 mW | 280 mW |
| Mounting Type | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount, Wettable Flank | Surface Mount |
| Package / Case | 3-XDFN Exposed Pad | 3-XDFN Exposed Pad | 3-XDFN Exposed Pad | 3-XDFN Exposed Pad | 3-XDFN Exposed Pad | 3-XDFN Exposed Pad |

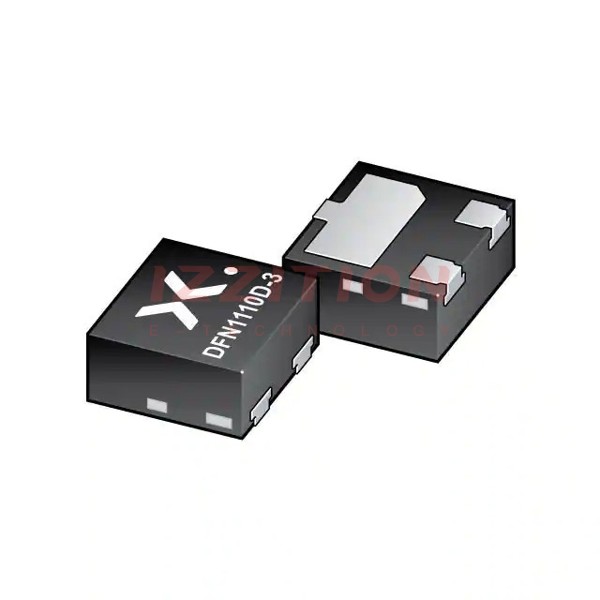

| Supplier Device Package | DFN1110D-3 | DFN1412D-3 | DFN1110D-3 | DFN1110D-3 | DFN1110D-3 | DFN1010D-3 |
