Please send RFQ , we will respond immediately.

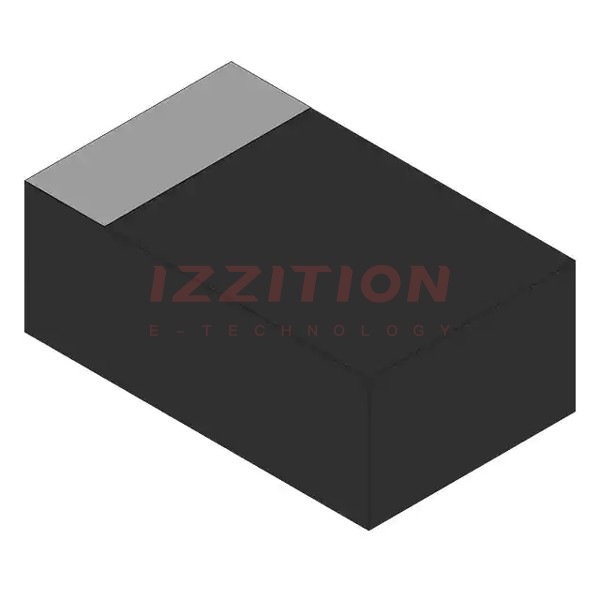

| Part Number | PDTC123JMB,315 | PDTC123TMB,315 | PDTC123YMB,315 | PDTC123JM,315 |
|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | NXP USA Inc. | NXP Semiconductors | Nexperia USA Inc. |
| Product Status | Active | Active | Active | Active |
| Transistor Type | - | NPN - Pre-Biased | - | NPN - Pre-Biased |
| Current - Collector (Ic) (Max) | - | 100 mA | - | 100 mA |
| Voltage - Collector Emitter Breakdown (Max) | - | 50 V | - | 50 V |
| Resistor - Base (R1) | - | 2.2 kOhms | - | 2.2 kOhms |
| Resistor - Emitter Base (R2) | - | - | - | 47 kOhms |
| DC Current Gain (hFE) (Min) @ Ic, Vce | - | 30 @ 20mA, 5V | - | 100 @ 10mA, 5V |
| Vce Saturation (Max) @ Ib, Ic | - | 150mV @ 500µA, 10mA | - | 100mV @ 250µA, 5mA |
| Current - Collector Cutoff (Max) | - | 1µA | - | 1µA |
| Frequency - Transition | - | 230 MHz | - | - |
| Power - Max | - | 250 mW | - | 250 mW |
| Mounting Type | - | Surface Mount | - | Surface Mount |
| Package / Case | - | SC-101, SOT-883 | - | SC-101, SOT-883 |
| Supplier Device Package | - | DFN1006B-3 | - | SOT-883 |
