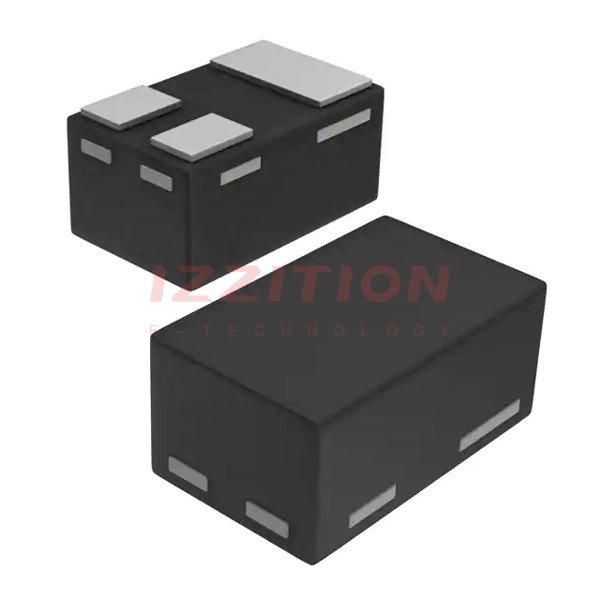

| Part Number | PDTC114EM,315 | PDTC114EMB,315 | PDTC114TM,315 | PDTC115EM,315 | PDTC114YM,315 |
|---|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Transistor Type | NPN - Pre-Biased | NPN - Pre-Biased | NPN - Pre-Biased | NPN - Pre-Biased | NPN - Pre-Biased |
| Current - Collector (Ic) (Max) | 100 mA | 100 mA | 100 mA | 20 mA | 100 mA |
| Voltage - Collector Emitter Breakdown (Max) | 50 V | 50 V | 50 V | 50 V | 50 V |
| Resistor - Base (R1) | 10 kOhms | 10 kOhms | 10 kOhms | 100 kOhms | 10 kOhms |
| Resistor - Emitter Base (R2) | 10 kOhms | 10 kOhms | - | 100 kOhms | 47 kOhms |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 30 @ 5mA, 5V | 30 @ 5mA, 5V | 200 @ 1mA, 5V | 80 @ 5mA, 5V | 100 @ 5mA, 5V |
| Vce Saturation (Max) @ Ib, Ic | 150mV @ 500µA, 10mA | 150mV @ 500µA, 10mA | 150mV @ 500µA, 10mA | 150mV @ 250µA, 5mA | 100mV @ 250µA, 5mA |
| Current - Collector Cutoff (Max) | 1µA | 1µA | 1µA | 1µA | 1µA |
| Frequency - Transition | - | 230 MHz | - | - | - |
| Power - Max | 250 mW | 250 mW | 250 mW | 250 mW | 250 mW |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SC-101, SOT-883 | 3-XFDFN | SC-101, SOT-883 | SC-101, SOT-883 | SC-101, SOT-883 |
| Supplier Device Package | SOT-883 | DFN1006B-3 | SOT-883 | SOT-883 | SOT-883 |
