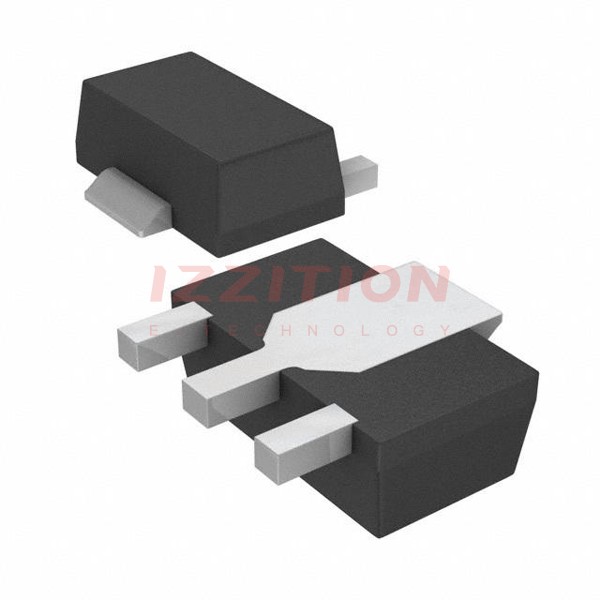

| Part Number | PBSS5320X,135 | PBSS5350X,135 | PBSS5330X,135 | PBSS5520X,135 | PBSS4320X,135 |
|---|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Transistor Type | PNP | PNP | PNP | PNP | NPN |
| Current - Collector (Ic) (Max) | 3 A | 3 A | 3 A | 5 A | 3 A |
| Voltage - Collector Emitter Breakdown (Max) | 20 V | 50 V | 30 V | 20 V | 20 V |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 300mA, 3A | 390mV @ 300mA, 3A | 320mV @ 300mA, 3A | 270mV @ 500mA, 5A | 310mV @ 300mA, 3A |
| Current - Collector Cutoff (Max) | 100nA | 100nA | 100nA (ICBO) | 100nA | 100nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 150 @ 2A, 2V | 200 @ 1A, 2V | 175 @ 1A, 2V | 250 @ 2A, 2V | 200 @ 2A, 2V |
| Power - Max | 1.6 W | 1.6 W | 1.6 W | 1.6 W | 1.6 W |
| Frequency - Transition | 100MHz | 100MHz | 100MHz | 100MHz | 100MHz |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | TO-243AA | TO-243AA | TO-243AA | TO-243AA | TO-243AA |
| Supplier Device Package | SOT-89 | SOT-89 | SOT-89 | SOT-89 | SOT-89 |
