Nexperia USA Inc.-PBSS5250X,135 - Transistors - Bipolar (BJT) - Single Product Specifications and Latest Quotes

Part Number	PBSS5250X,135	PBSS5350X,135	PBSS4250X,135	PBSS5250X,115
Manufacturer	Nexperia USA Inc.	Nexperia USA Inc.	Nexperia USA Inc.	Nexperia USA Inc.
Product Status	Active	Active	Active	Active
Transistor Type	PNP	PNP	NPN	PNP
Current - Collector (Ic) (Max)	2 A	3 A	2 A	2 A
Voltage - Collector Emitter Breakdown (Max)	50 V	50 V	50 V	50 V
Vce Saturation (Max) @ Ib, Ic	320mV @ 200mA, 2A	390mV @ 300mA, 3A	320mV @ 200mA, 2A	320mV @ 200mA, 2A
Current - Collector Cutoff (Max)	100nA (ICBO)	100nA	100nA	100nA
DC Current Gain (hFE) (Min) @ Ic, Vce	200 @ 1A, 2V	200 @ 1A, 2V	300 @ 1A, 2V	200 @ 1A, 2V
Power - Max	1 W	1.6 W	1 W	1 W
Frequency - Transition	100MHz	100MHz	100MHz	100MHz
Operating Temperature	150°C (TJ)	150°C (TJ)	150°C (TJ)	150°C (TJ)
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Package / Case	TO-243AA	TO-243AA	TO-243AA	TO-243AA
Supplier Device Package	SOT-89	SOT-89	SOT-89	SOT-89

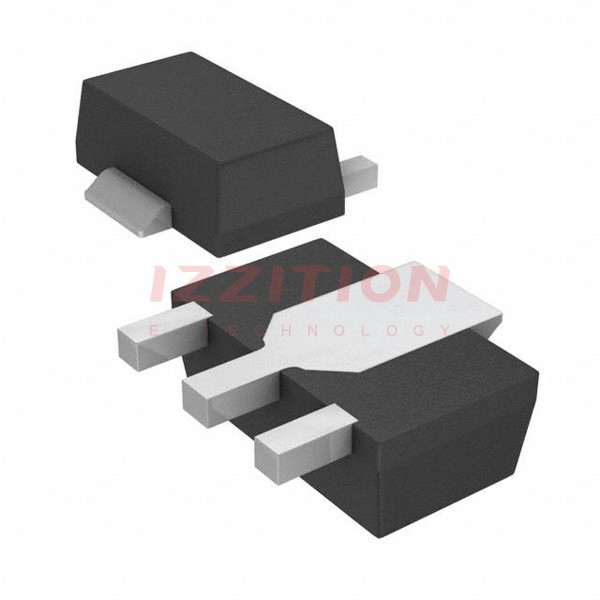

Nexperia USA Inc. PBSS5250X,135

Transistor Type:	PNP
Current - Collector (Ic) (Max):	2 A
Voltage - Collector Emitter Breakdown (Max):	50 V
Vce Saturation (Max) @ Ib, Ic:	320mV @ 200mA, 2A
Current - Collector Cutoff (Max):	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:	200 @ 1A, 2V
Power - Max:	1 W
Frequency - Transition:	100MHz
Operating Temperature:	150°C (TJ)
Mounting Type:	Surface Mount
Package / Case:	TO-243AA
Supplier Device Package:	SOT-89
