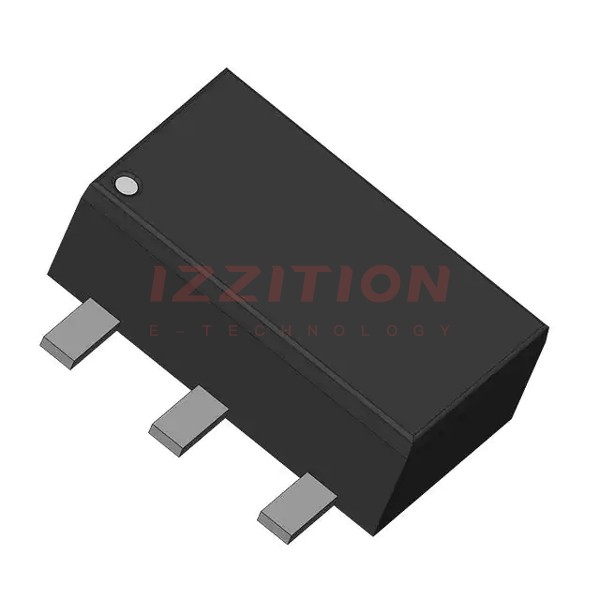

| Part Number | PBSS4520X,135 | PBSS5520X,135 | PBSS4540X,135 | PBSS4320X,135 |
|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active | Active |
| Transistor Type | NPN | PNP | NPN | NPN |
| Current - Collector (Ic) (Max) | 5 A | 5 A | 4 A | 3 A |
| Voltage - Collector Emitter Breakdown (Max) | 20 V | 20 V | 40 V | 20 V |
| Vce Saturation (Max) @ Ib, Ic | 220mV @ 500mA, 5A | 270mV @ 500mA, 5A | 355mV @ 500mA, 5A | 310mV @ 300mA, 3A |
| Current - Collector Cutoff (Max) | 100nA | 100nA | 100nA | 100nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 250 @ 2A, 2V | 250 @ 2A, 2V | 250 @ 2A, 2V | 200 @ 2A, 2V |
| Power - Max | 550 mW | 1.6 W | 1.6 W | 1.6 W |
| Frequency - Transition | 125MHz | 100MHz | 70MHz | 100MHz |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | TO-243AA | TO-243AA | TO-243AA | TO-243AA |
| Supplier Device Package | SOT-89 | SOT-89 | SOT-89 | SOT-89 |
