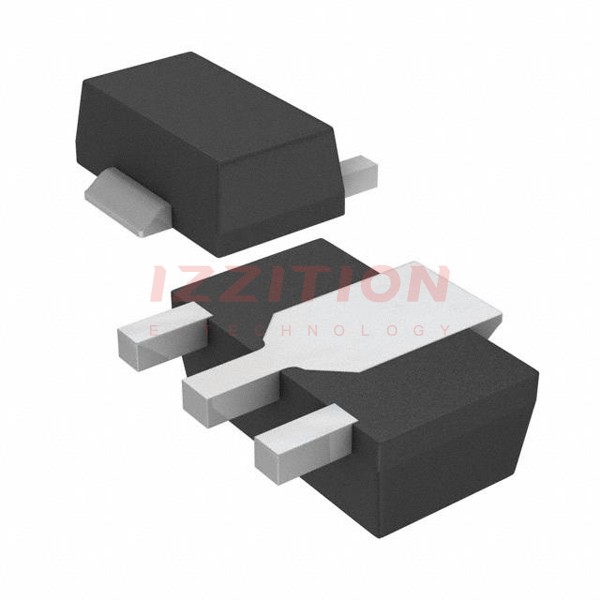

| Part Number | PBSS4360XF | PBSS4360XX | PBSS5360XF | PBSS4160XF |
|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active | Active |
| Transistor Type | NPN | NPN | PNP | NPN |
| Current - Collector (Ic) (Max) | 3 A | 3 A | 3 A | 1 A |
| Voltage - Collector Emitter Breakdown (Max) | 60 V | 60 V | 60 V | 60 V |
| Vce Saturation (Max) @ Ib, Ic | 400mV @ 300mA, 3A | 400mV @ 3A, 300mA | 550mV @ 300mA, 3A | 200mV @ 50mA, 500mA |
| Current - Collector Cutoff (Max) | 100nA | 100nA | 100nA | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 200 @ 1A, 5V | 75 @ 3A, 5V | 150 @ 50mA, 5V | 170 @ 500mA, 10V |
| Power - Max | 1.35 W | 1.35 W | 1.35 W | 1.35 W |
| Frequency - Transition | 75MHz | 75MHz | 65MHz | 180MHz |
| Operating Temperature | -55°C ~ 150°C (TA) | -55°C ~ 150°C (TA) | -55°C ~ 150°C (TA) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | TO-243AA | TO-243AA | TO-243AA | TO-243AA |
| Supplier Device Package | SOT-89 | SOT-89 | SOT-89 | SOT-89 |
