Please send RFQ , we will respond immediately.

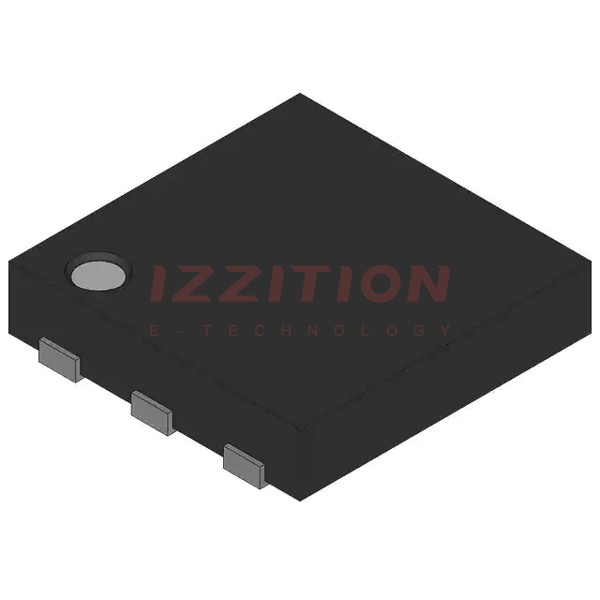

| Part Number | PBSS4260PANSX | PBSS4160PANSX | PBSS4220PANSX | PBSS4260PANPSX |
|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active | Active |
| Transistor Type | - | 2 NPN (Dual) | 2 NPN (Dual) | NPN, PNP |
| Current - Collector (Ic) (Max) | - | 1A | 2A | 2A |
| Voltage - Collector Emitter Breakdown (Max) | - | 60V | 20V | 60V |
| Vce Saturation (Max) @ Ib, Ic | - | 120mV @ 50mA, 500mA | 320mV @ 200mA, 2A | 350mV @ 200mA, 2A |
| Current - Collector Cutoff (Max) | - | 100nA (ICBO) | 100nA (ICBO) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | - | 150 @ 500mA, 2V | 200 @ 1A, 2V | 120 @ 1A, 2V |
| Power - Max | - | 370mW | 370mW | 370mW |
| Frequency - Transition | - | 175MHz | 120MHz | 140MHz |
| Operating Temperature | - | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | - | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | - | 6-UDFN Exposed Pad | 6-UDFN Exposed Pad | 6-UDFN Exposed Pad |
| Supplier Device Package | - | DFN2020D-6 | DFN2020D-6 | DFN2020D-6 |
