Please send RFQ , we will respond immediately.

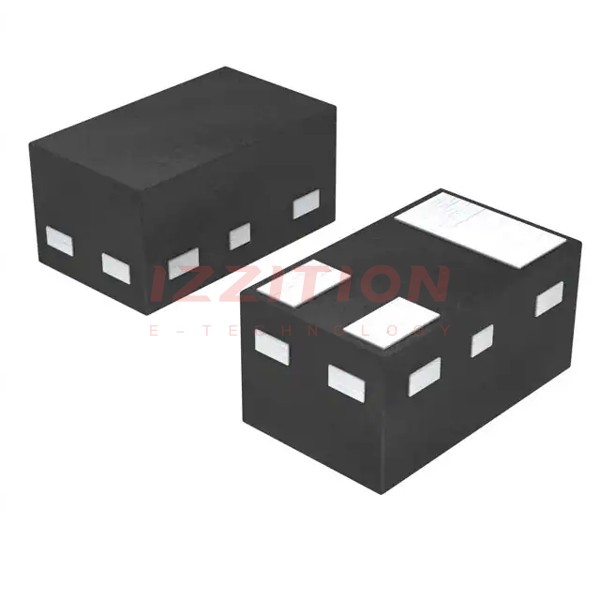

| Part Number | PBSS2515MB,315 | PBSS3515MB,315 | PBSS2515M,315 |
|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active |
| Transistor Type | NPN | PNP | NPN |
| Current - Collector (Ic) (Max) | 500 mA | 500 mA | 500 mA |
| Voltage - Collector Emitter Breakdown (Max) | 15 V | 15 V | 15 V |
| Vce Saturation (Max) @ Ib, Ic | 25mV @ 500µA, 10mA | 25mV @ 500µA, 10mA | 250mV @ 50mA, 500mA |
| Current - Collector Cutoff (Max) | 100nA (ICBO) | 100nA (ICBO) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 200 @ 10mA, 2V | 200 @ 10mA, 2V | 150 @ 100mA, 2V |
| Power - Max | 250 mW | 250 mW | 430 mW |
| Frequency - Transition | 420MHz | 280MHz | 420MHz |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 3-XFDFN | 3-XFDFN | SC-101, SOT-883 |
| Supplier Device Package | DFN1006B-3 | DFN1006B-3 | SOT-883 |
