Please send RFQ , we will respond immediately.
| Part Number | PBLS4001Y,115 | PBLS4005Y,115 | PBLS4004Y,115 | PBLS4002Y,115 | PBLS4003Y,115 | PBLS4001D,115 | PBLS4001V,115 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | NXP USA Inc. |
| Product Status | Active | Active | Active | Active | Active | Obsolete | Obsolete |
| Transistor Type | 1 NPN Pre-Biased, 1 PNP | 1 NPN Pre-Biased, 1 PNP | 1 NPN Pre-Biased, 1 PNP | 1 NPN Pre-Biased, 1 PNP | 1 NPN Pre-Biased, 1 PNP | 1 NPN Pre-Biased, 1 PNP | 1 NPN Pre-Biased, 1 PNP |
| Current - Collector (Ic) (Max) | 100mA, 500mA | 100mA, 500mA | 100mA, 500mA | 100mA, 500mA | 100mA, 500mA | 100mA, 700mA | 100mA, 500mA |
| Voltage - Collector Emitter Breakdown (Max) | 50V, 40V | 50V, 40V | 50V, 40V | 50V, 40V | 50V, 40V | 50V, 40V | 50V, 40V |
| Resistor - Base (R1) | 2.2kOhms | 47kOhms | 22kOhms | 4.7kOhms | 10kOhms | 2.2kOhms | 2.2kOhms |
| Resistor - Emitter Base (R2) | 2.2kOhms | 47kOhms | 22kOhms | 4.7kOhms | 10kOhms | 2.2kOhms | 2.2kOhms |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 30 @ 20mA, 5V / 150 @ 100mA, 2V | 80 @ 5mA, 5V / 150 @ 100mA, 2V | 60 @ 5mA, 5V / 150 @ 100mA, 2V | 30 @ 10mA, 5V / 150 @ 100mA, 2V | 30 @ 5mA, 5V / 150 @ 100mA. 2V | 30 @ 20mA, 5V / 300 @ 100mA, 5V | 30 @ 20mA, 5V / 150 @ 100mA, 2V |
| Vce Saturation (Max) @ Ib, Ic | 150mV @ 500µA, 10mA / 350mV @ 50mA, 500mA | 150mV @ 500µA, 10mA / 350mV @ 50mA, 500mA | 150mV @ 500µA, 10mA / 350mV @ 50mA, 500mA | 150mV @ 500µA, 10mA / 350mV @ 50mA, 500mA | 150mV @ 500µA, 10mA / 350mV @ 50mA, 500mA | 150mV @ 500µA, 10mA / 310mV @ 100mA, 1A | 150mV @ 500µA, 10mA / 350mV @ 50mA, 500mA |
| Current - Collector Cutoff (Max) | 1µA | 1µA | 1µA | 1µA | 1µA | 1µA, 100nA | 1µA |
| Frequency - Transition | 300MHz | 300MHz | 300MHz | 300MHz | 300MHz | 150MHz | 300MHz |
| Power - Max | 300mW | 300mW | 300mW | 300mW | 300mW | 600mW | 300mW |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

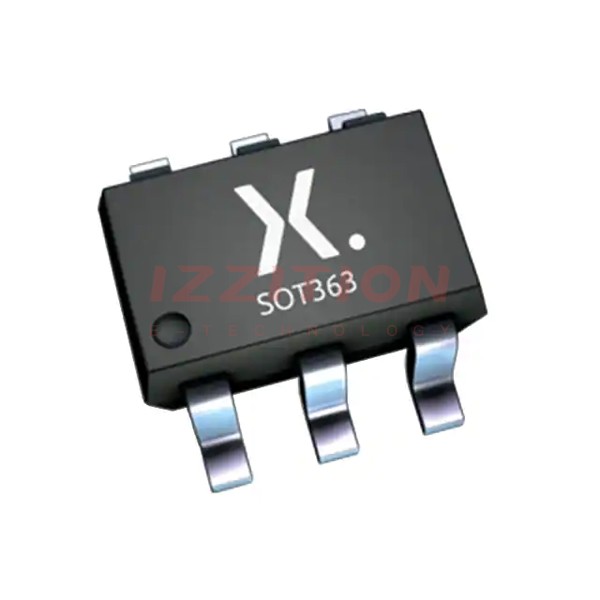

| Package / Case | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 | SC-74, SOT-457 | SOT-563, SOT-666 |
| Supplier Device Package | 6-TSSOP | 6-TSSOP | 6-TSSOP | 6-TSSOP | 6-TSSOP | 6-TSOP | SOT-666 |
