| Part Number | PBLS2021D,115 | PBLS6021D,115 | PBLS2024D,115 | PBLS2023D,115 | PBLS2022D,115 | PBLS2001D,115 |
|---|---|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Transistor Type | - | - | 1 PNP Pre-Biased, 1 PNP | 1 PNP Pre-Biased, 1 PNP | 1 PNP Pre-Biased, 1 PNP | 1 NPN Pre-Biased, 1 PNP |
| Current - Collector (Ic) (Max) | - | - | 100mA, 1.8A | 100mA, 1.8A | 100mA, 1.8A | 100mA, 1A |
| Voltage - Collector Emitter Breakdown (Max) | - | - | 50V, 20V | 50V, 20V | 50V, 20V | 50V, 20V |
| Resistor - Base (R1) | - | - | 22kOhms | 10kOhms | 4.7kOhms | 2.2kOhms |
| Resistor - Emitter Base (R2) | - | - | 22kOhms | 10kOhms | 4.7kOhms | 2.2kOhms |
| DC Current Gain (hFE) (Min) @ Ic, Vce | - | - | 60 @ 5mA, 5V / 200 @ 1A, 2V | 30 @ 5mA, 5V / 200 @ 1A, 2V | 30 @ 10mA, 5V / 200 @ 1A, 2V | 30 @ 20mA, 5V / 220 @ 500mA, 2V |
| Vce Saturation (Max) @ Ib, Ic | - | - | 150mV @ 500µA, 10mA / 210mV @ 100mA, 1.8A | 150mV @ 500µA, 10mA / 210mV @ 100mA, 1.8A | 150mV @ 500µA, 10mA / 210mV @ 100mA, 1.8A | 150mV @ 500µA, 10mA / 280mV @ 100mA, 1A |
| Current - Collector Cutoff (Max) | - | - | 1µA, 100nA | 1µA, 100nA | 1µA, 100nA | 1µA, 100nA |
| Frequency - Transition | - | - | 130MHz | 130MHz | 130MHz | 185MHz |
| Power - Max | - | - | 760mW | 760mW | 760mW | 600mW |
| Mounting Type | - | - | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

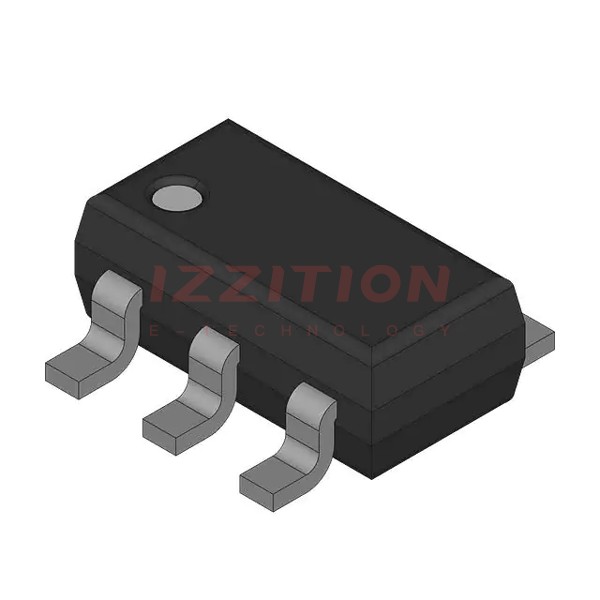

| Package / Case | - | - | SC-74, SOT-457 | SC-74, SOT-457 | SC-74, SOT-457 | SC-74, SOT-457 |
| Supplier Device Package | - | - | 6-TSOP | 6-TSOP | 6-TSOP | 6-TSOP |
