Nexperia USA Inc.-NZX33C,133 - Diodes - Zener - Single Product Specifications and Latest Quotes

Part Number	NZX33C,133	NZX3V3C,133	NZX13C,133	NZX30C,133	NZX33A,133	NZX33B,133
Manufacturer	Nexperia USA Inc.	NXP USA Inc.	Nexperia USA Inc.	Nexperia USA Inc.	Nexperia USA Inc.	Nexperia USA Inc.
Product Status	Active	Active	Active	Active	Active	Active
Voltage - Zener (Nom) (Vz)	33 V	3.3 V	13.15 V	30 V	31.9 V	32.9 V
Tolerance	±2%	±3%	±2%	±2%	±2%	±2%
Power - Max	500 mW	500 mW	500 mW	500 mW	500 mW	500 mW
Impedance (Max) (Zzt)	120 Ohms	100 Ohms	35 Ohms	100 Ohms	120 Ohms	120 Ohms
Current - Reverse Leakage @ Vr	50 nA @ 23.1 V	5 µA @ 1 V	100 nA @ 8 V	50 nA @ 21 V	50 nA @ 23.1 V	50 nA @ 23.1 V
Voltage - Forward (Vf) (Max) @ If	1.5 V @ 200 mA	1.5 V @ 200 mA	1.5 V @ 200 mA	1.5 V @ 200 mA	1.5 V @ 200 mA	1.5 V @ 200 mA
Operating Temperature	-55°C ~ 175°C	-55°C ~ 175°C	-55°C ~ 175°C	-55°C ~ 175°C	-55°C ~ 175°C	-55°C ~ 175°C
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Package / Case	DO-204AH, DO-35, Axial	DO-204AH, DO-35, Axial	DO-204AH, DO-35, Axial	DO-204AH, DO-35, Axial	DO-204AH, DO-35, Axial	DO-204AH, DO-35, Axial
Supplier Device Package	ALF2	ALF2	ALF2	ALF2	ALF2	ALF2

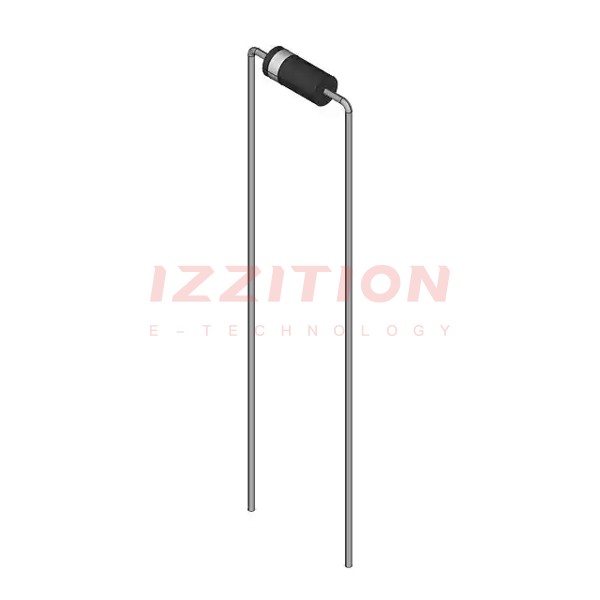

Nexperia USA Inc. NZX33C,133
