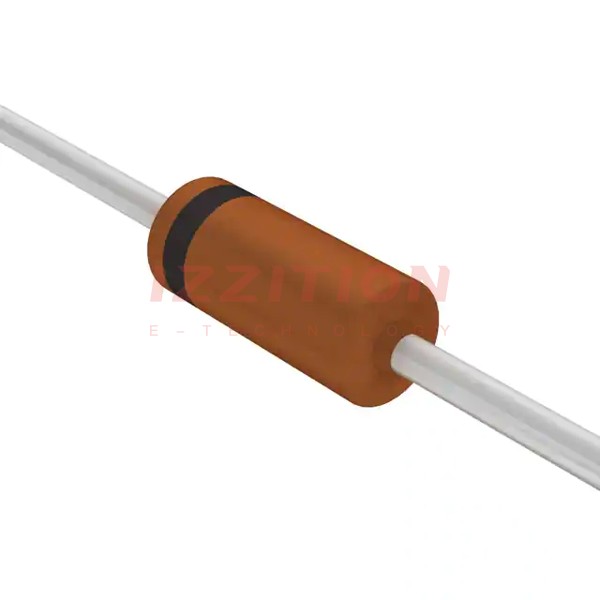

Nexperia USA Inc.-NZX24A,133 - Diodes - Zener - Single Product Specifications and Latest Quotes

Part Number	NZX24A,133	NZX24X,133	NZX24C,133	NZX2V4A,133	NZX24B,133	NZX27A,133	NZX14A,133	NZX20A,133	NZX22A,133
Manufacturer	Nexperia USA Inc.	Nexperia USA Inc.	Nexperia USA Inc.	Nexperia USA Inc.	Nexperia USA Inc.	Nexperia USA Inc.	NXP USA Inc.	NXP USA Inc.	Nexperia USA Inc.
Product Status	Active	Active	Active	Active	Active	Active	Active	Active	Active
Voltage - Zener (Nom) (Vz)	23.45 V	23.19 V	24.9 V	2.4 V	24.15 V	25.9 V	14 V	20 V	22 V
Tolerance	±2%	±2%	±2%	±4%	±2%	±2%	±2%	±2%	±2%
Power - Max	500 mW	500 mW	500 mW	500 mW	500 mW	500 mW	500 mW	500 mW	500 mW
Impedance (Max) (Zzt)	70 Ohms	70 Ohms	70 Ohms	100 Ohms	70 Ohms	80 Ohms	35 Ohms	60 Ohms	65 Ohms
Current - Reverse Leakage @ Vr	50 nA @ 16.8 V	50 nA @ 16.8 V	50 nA @ 16.8 V	50 µA @ 1 V	50 nA @ 16.8 V	50 nA @ 18.9 V	50 nA @ 9.8 V	50 nA @ 14 V	50 nA @ 15.4 V
Voltage - Forward (Vf) (Max) @ If	1.5 V @ 200 mA	1.5 V @ 200 mA	1.5 V @ 200 mA	1.5 V @ 200 mA	1.5 V @ 200 mA	1.5 V @ 200 mA	1.5 V @ 200 mA	1.5 V @ 200 mA	1.5 V @ 200 mA
Operating Temperature	-55°C ~ 175°C	-55°C ~ 175°C	-55°C ~ 175°C	-55°C ~ 175°C	-55°C ~ 175°C	-55°C ~ 175°C	-55°C ~ 175°C	-55°C ~ 175°C	-55°C ~ 175°C
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Package / Case	DO-204AH, DO-35, Axial	DO-204AH, DO-35, Axial	DO-204AH, DO-35, Axial	DO-204AH, DO-35, Axial	DO-204AH, DO-35, Axial	DO-204AH, DO-35, Axial	DO-204AH, DO-35, Axial	DO-204AH, DO-35, Axial	DO-204AH, DO-35, Axial
Supplier Device Package	ALF2	ALF2	ALF2	ALF2	ALF2	ALF2	ALF2	ALF2	ALF2

Nexperia USA Inc. NZX24A,133
