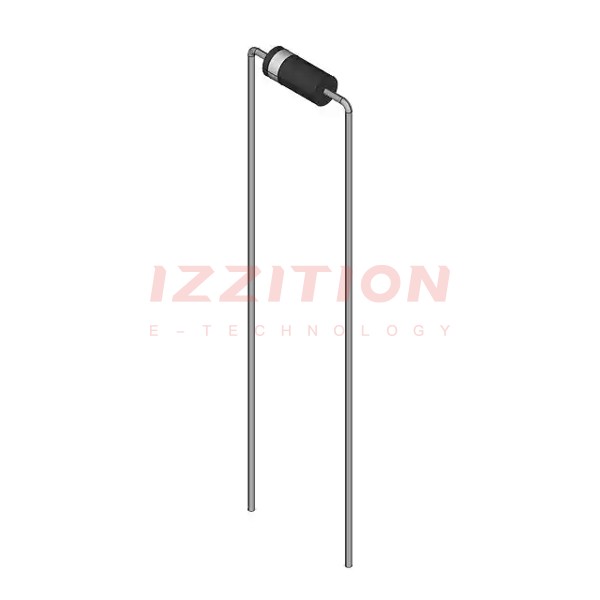

Nexperia USA Inc.-NZX22A,133 - Diodes - Zener - Single Product Specifications and Latest Quotes

Part Number	NZX22A,133	NZX22C,133	NZX24A,133	NZX22B,133	NZX27A,133	NZX12A,133	NZX20A,133
Manufacturer	Nexperia USA Inc.	Nexperia USA Inc.	Nexperia USA Inc.	Nexperia USA Inc.	Nexperia USA Inc.	Nexperia USA Inc.	NXP USA Inc.
Product Status	Active	Active	Active	Active	Active	Active	Active
Voltage - Zener (Nom) (Vz)	22 V	22.8 V	23.45 V	22.1 V	25.9 V	11.65 V	20 V
Tolerance	±2%	±2%	±2%	±2%	±2%	±2%	±2%
Power - Max	500 mW	500 mW	500 mW	500 mW	500 mW	500 mW	500 mW
Impedance (Max) (Zzt)	65 Ohms	65 Ohms	70 Ohms	65 Ohms	80 Ohms	35 Ohms	60 Ohms
Current - Reverse Leakage @ Vr	50 nA @ 15.4 V	50 nA @ 15.4 V	50 nA @ 16.8 V	50 nA @ 15.4 V	50 nA @ 18.9 V	100 nA @ 8 V	50 nA @ 14 V
Voltage - Forward (Vf) (Max) @ If	1.5 V @ 200 mA	1.5 V @ 200 mA	1.5 V @ 200 mA	1.5 V @ 200 mA	1.5 V @ 200 mA	1.5 V @ 200 mA	1.5 V @ 200 mA
Operating Temperature	-55°C ~ 175°C	-55°C ~ 175°C	-55°C ~ 175°C	-55°C ~ 175°C	-55°C ~ 175°C	-55°C ~ 175°C	-55°C ~ 175°C
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Package / Case	DO-204AH, DO-35, Axial	DO-204AH, DO-35, Axial	DO-204AH, DO-35, Axial	DO-204AH, DO-35, Axial	DO-204AH, DO-35, Axial	DO-204AH, DO-35, Axial	DO-204AH, DO-35, Axial
Supplier Device Package	ALF2	ALF2	ALF2	ALF2	ALF2	ALF2	ALF2

Nexperia USA Inc. NZX22A,133
