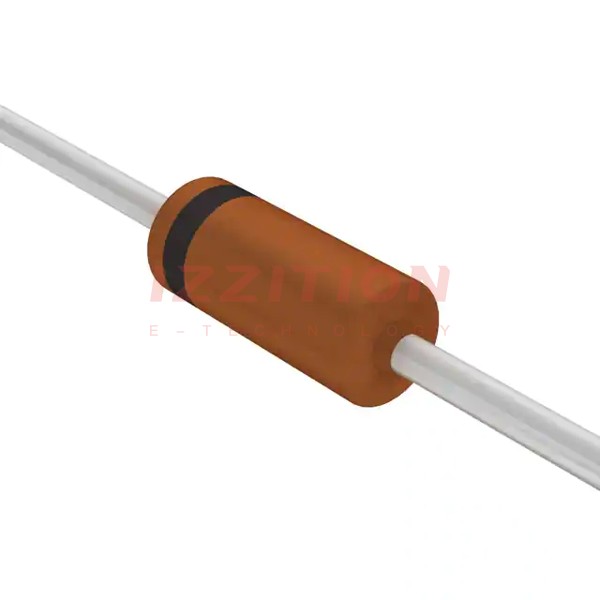

| Part Number | NZX15B,133 | NZX15X,133 | NZX18B,133 | NZX15C,133 | NZX16B,133 | NZX10B,133 | NZX11B,133 | NZX12B,133 | NZX13B,133 | NZX14B,133 | NZX15A,133 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Voltage - Zener (Nom) (Vz) | 14.8 V | 14.72 V | 17.9 V | 15.2 V | 16.1 V | 9.9 V | 10.9 V | 11.85 V | 12.85 V | 13.75 V | 14.4 V |
| Tolerance | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% | ±2% |
| Power - Max | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW | 500 mW |
| Impedance (Max) (Zzt) | 40 Ohms | 40 Ohms | 55 Ohms | 40 Ohms | 45 Ohms | 25 Ohms | 25 Ohms | 35 Ohms | 35 Ohms | 35 Ohms | 40 Ohms |
| Current - Reverse Leakage @ Vr | 50 nA @ 10.5 V | 50 nA @ 10.5 V | 50 nA @ 12.6 V | 50 nA @ 10.5 V | 50 nA @ 11.2 V | 200 nA @ 7 V | 100 nA @ 8 V | 100 nA @ 8 V | 100 nA @ 8 V | 50 nA @ 9.87 V | 50 nA @ 10.5 V |
| Voltage - Forward (Vf) (Max) @ If | 1.5 V @ 200 mA | 1.5 V @ 200 mA | 1.5 V @ 200 mA | 1.5 V @ 200 mA | 1.5 V @ 200 mA | 1.5 V @ 200 mA | 1.5 V @ 200 mA | 1.5 V @ 200 mA | 1.5 V @ 200 mA | 1.5 V @ 200 mA | 1.5 V @ 200 mA |
| Operating Temperature | 175°C | -55°C ~ 175°C | 175°C | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C | 175°C | -55°C ~ 175°C | -55°C ~ 175°C | -55°C ~ 175°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial | DO-204AH, DO-35, Axial |
| Supplier Device Package | ALF2 | ALF2 | ALF2 | ALF2 | ALF2 | ALF2 | ALF2 | ALF2 | ALF2 | ALF2 | ALF2 |
